Aluminum Ladder Cable Tray Roll Forming Machine
Advanced Manufacturing Solution: The Innovative Aluminum Ladder Cable Tray Roll Forming Machine
The telecommunications and power distribution industries continue to evolve with increasing demands for reliable, durable, and customizable cable management solutions. Proper cable organization is crucial for safety, maintenance, and operational efficiency in various applications, from industrial plants to commercial buildings. As a specialized manufacturer of cold roll forming equipment, we are proud to introduce our state-of-the-art Aluminum Ladder Cable Tray Roll Forming Machine, a complete production solution engineered to manufacture high-quality aluminum ladder cable trays with exceptional precision and efficiency. This advanced system represents our commitment to delivering innovative manufacturing technology that meets the evolving needs of the cable management industry.
Workflow Diagram

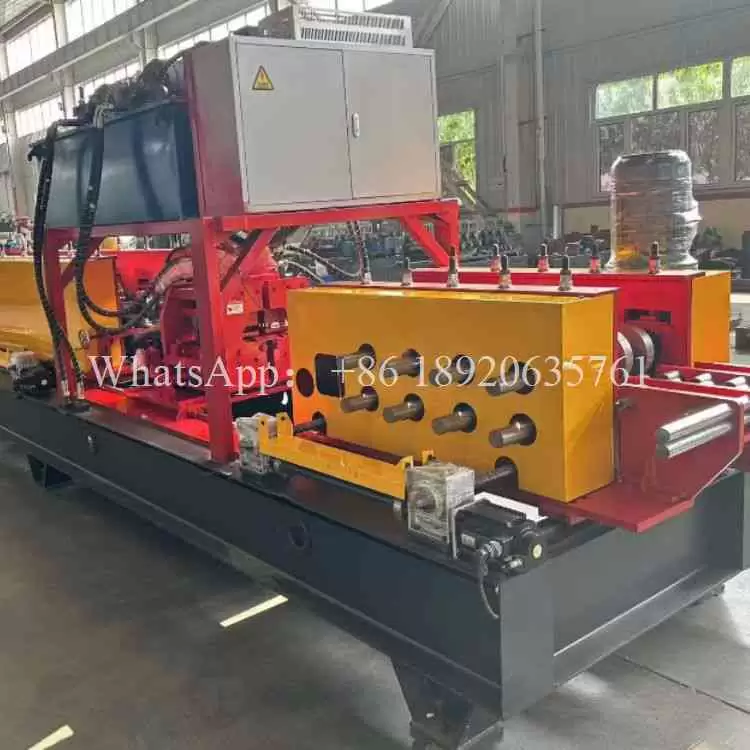

Our Aluminum Ladder Cable Tray Roll Forming Machine incorporates a sophisticated production process that ensures consistent quality and dimensional accuracy. The manufacturing begins with automatic decoiling of aluminum coils, ensuring smooth material feeding into the production line. The material then proceeds through a precision punching station, where holes of specific shapes and sizes are created according to project requirements. The heart of the system is the advanced roll forming section, where the aluminum strip is gradually shaped through a series of engineered rollers into the distinctive ladder-style profile. Following the forming process, a high-speed cutting mechanism separates the continuous profile into specified lengths, and an automated stacking system organizes the finished products for convenient handling and shipment.

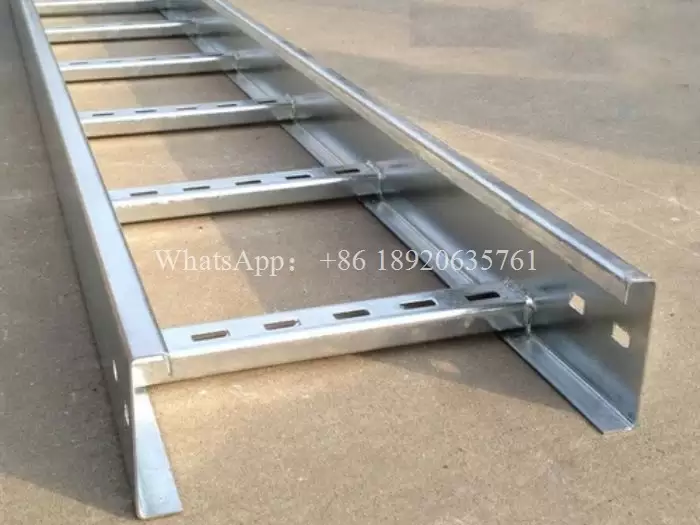

What truly distinguishes our Aluminum Ladder Cable Tray Roll Forming Machine is its remarkable customization capability, particularly in hole punching configurations. The equipment allows comprehensive adjustments to hole shapes, sizes, and spacing patterns, enabling manufacturers to produce cable trays that meet specific installation requirements and load-bearing capacities. This flexibility ensures perfect compatibility with various cable types and installation environments, from heavy-duty industrial applications to sophisticated commercial projects. To support rapid project implementation, we provide an efficient 3-day drawing approval service. Our engineering team delivers detailed technical schematics and layout plans for client review, ensuring the production configuration meets all specifications before manufacturing begins.
Beyond the advanced machinery, we offer comprehensive technical support to ensure optimal performance throughout the equipment's operational life. Our remote service program includes real-time video guidance from experienced engineers, who provide assistance with machine installation, operational training, and troubleshooting through digital platforms. This remote support capability ensures that your Aluminum Ladder Cable Tray Roll Forming Machine maintains peak performance while minimizing potential downtime, regardless of your geographical location.
Investing in our Aluminum Ladder Cable Tray Roll Forming Machine represents a strategic commitment to manufacturing excellence and business growth. This sophisticated production solution enables manufacturers to produce high-quality aluminum ladder cable trays with exceptional consistency, supporting safer and more organized cable management systems worldwide. As infrastructure development continues to expand globally, our machine provides manufacturers with the capability to meet evolving market demands while maintaining competitive advantage through superior manufacturing technology and unwavering technical support.
More parameters
| Product Name | Aluminum Ladder Cable Tray Roll Forming Machine |
| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |
| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |
| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |
| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |
| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
