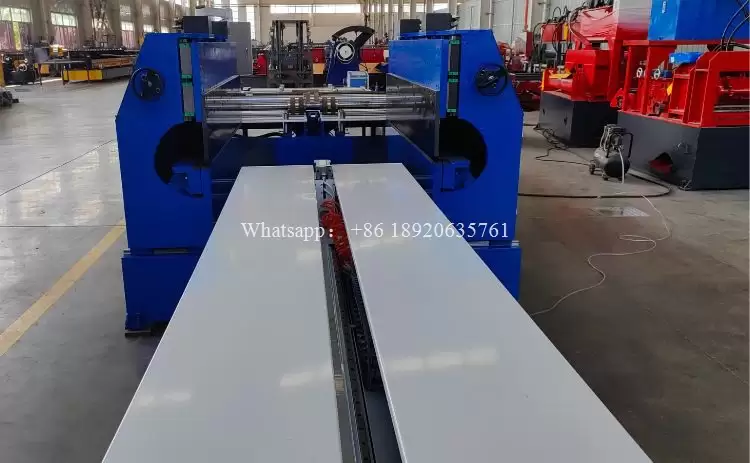

Cable Tray Bending Machine
Introducing the Advanced Cable Tray Bending Machine for Your Projects
In the realm of efficient and reliable cable management system installation, the need for precision-formed supports is paramount. Our company, as a specialized manufacturer of cold-forming machinery, is proud to offer our state-of-the-art Cable Tray Bending Machine. This robust equipment is engineered to deliver exceptional performance and unparalleled flexibility, catering to the specific demands of modern electrical infrastructure projects.
Workflow Diagram
The core strength of our Cable Tray Bending Machine lies in its high degree of customization. We understand that every project has unique requirements. Therefore, our machine can be tailored to produce a vast array of bend shapes—from simple horizontal and vertical bends to more complex offsets and transitions. Furthermore, the bending width is fully adjustable, ensuring perfect compatibility with various cable tray dimensions and specifications. This adaptability makes our Cable Tray Bending Machine an invaluable asset for any contractor or fabricator.
To streamline your operations and minimize downtime, we guarantee a swift 3-day drawing approval process once your requirements are confirmed. Our engineering team works diligently to provide accurate and detailed design plans, ensuring the final product meets your exact expectations.
Beyond the initial sale, we are committed to your long-term satisfaction. Our comprehensive support includes remote warranty services performed by our experienced engineers. Through live video guidance, we can assist your operators with setup, troubleshooting, and maintenance procedures for your Cable Tray Bending Machine, ensuring optimal performance and longevity no matter your location.
Investing in our Cable Tray Bending Machine means investing in productivity, precision, and unwavering professional support. It is the definitive solution for fabricating high-quality cable trays with consistency and efficiency.
More parameters
| Product Name | Cable Tray Bending Machine |
| CNC bending part | Automatic feed port identification Servo opening and closing Precision-ground forming tools Opening and closing motor power (5.5kW) |

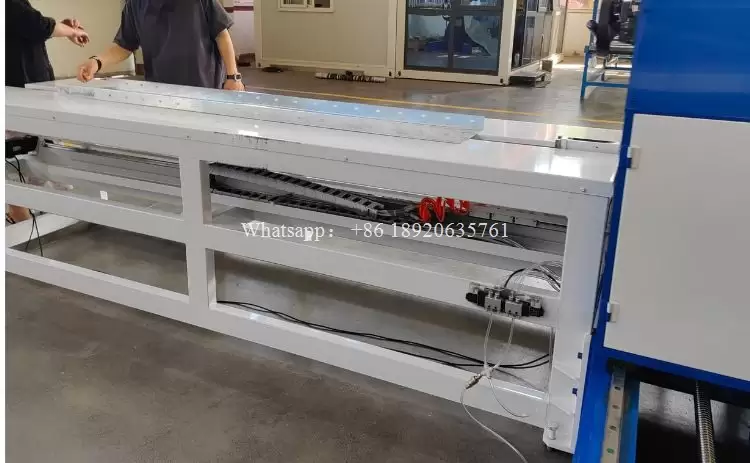

| Discharging station | 4-meter servo-assisted discharge Main motor power (1.5 kW) Anti-collision material limiter |
| Hydraulic station | Multiple solenoid valves Solenoid overflow valve Cooling system Motor power (7.5 x 2) kW Oil tank capacity (400 liters) |
| Produce speed |
4-6 m/min |
| Rolled strip material | Q235 cold rolled sheet, galvanized sheet |
| Voltage | 380V，50Hz，3p be customized |
| Feeding thickness | 1.5(±0.03)—2.0(±0.03) mm |
| Equipment footprint | 6.5×2.5×2M |
| Feeding width | 200-1250 mm |
| Molding specifications | 800/200-100/50 (single and double folding) |
Application Scenario
Our Certificate
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a cable tray bending machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the cable tray bending machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
