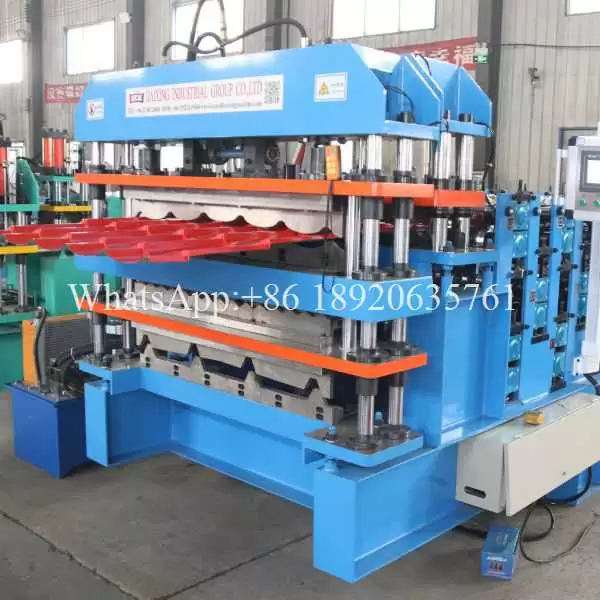

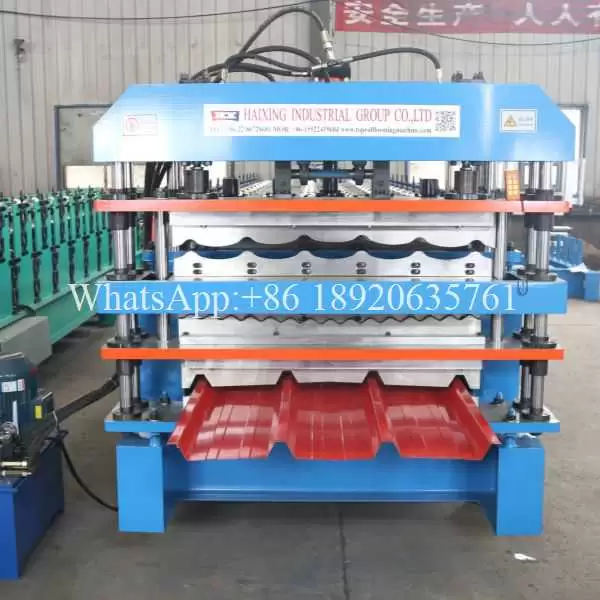

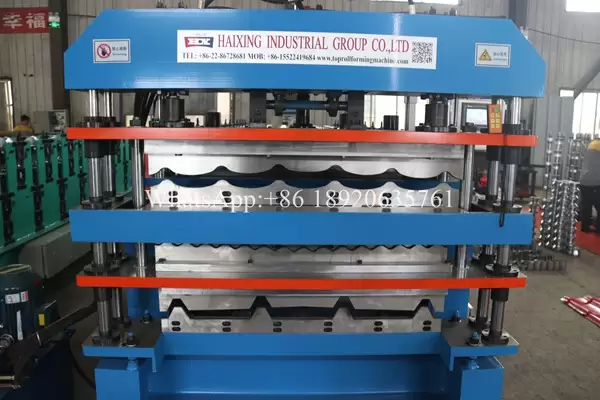

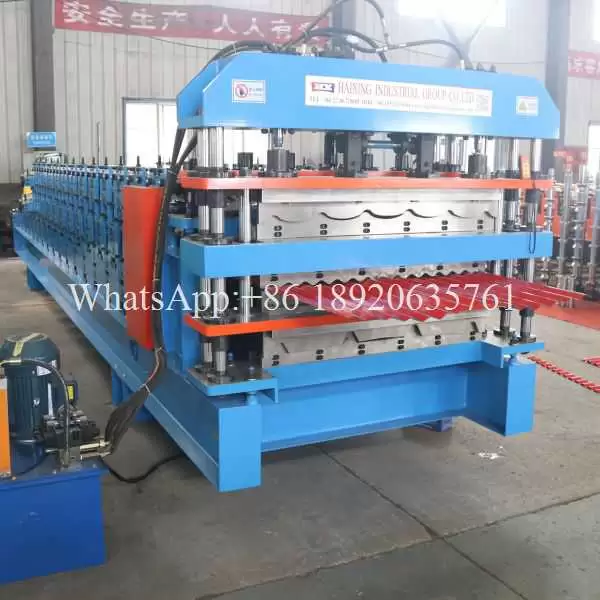

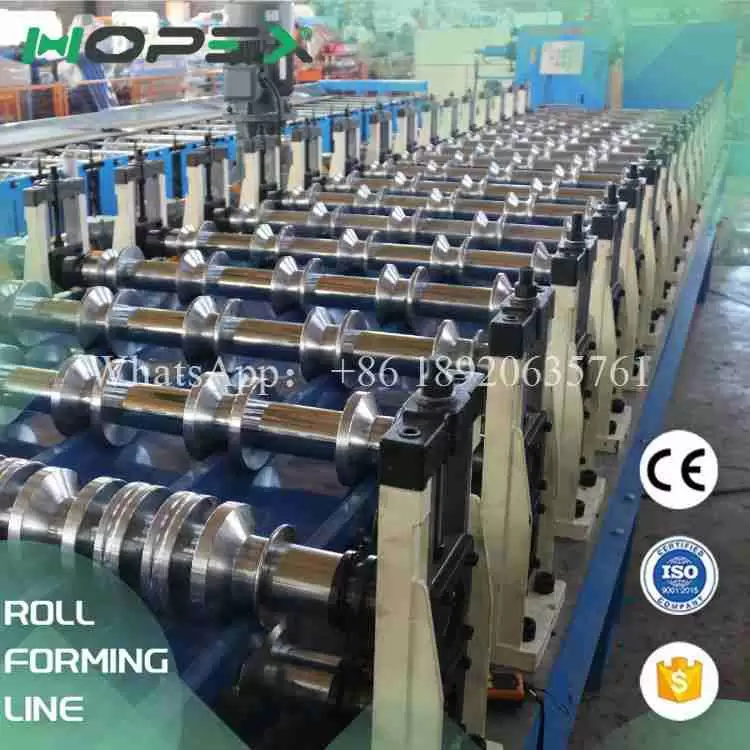

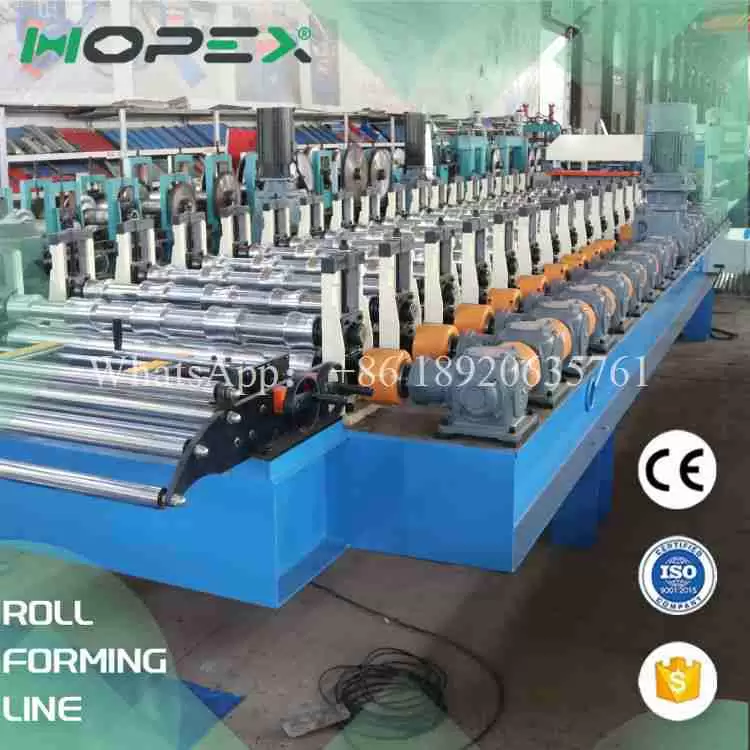

High-efficiency Three Layer Roof Sheet Roll Forming Machine
Production Line: Three Layer Roof Sheet Roll Forming Machine with PLC Control
In the competitive roofing manufacturing sector, versatility and space efficiency are paramount. Meeting diverse architectural demands often requires producing multiple profile types – glazed tile, corrugated, and trapezoidal sheets – traditionally necessitating separate, space-consuming lines. The innovative Three Layer Roof Sheet Roll Forming Machine shatters this paradigm. This vertically integrated powerhouse consolidates three distinct roll forming capabilities into a single, compact footprint, offering unprecedented production flexibility and operational efficiency for modern metal roofing factories.
Roll Forming Process Workflow Diagram
More parameters
| Product Name | three layer roof sheet roll forming machine |
| Main motor power | 5.5 kw |
| Hydraulic station | 5.5 kw |
| Produce speed | 10-15 m/min |
| Shaft material | 45# Steel |

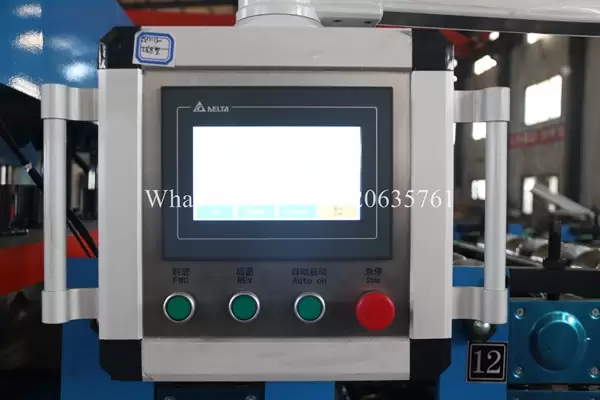

| Touch screen | PLC or customized according to customer requirements |
| Rolling materials | Cr12, heat treatment HRC58-60℃ |
| Cutting blade material | Cr12MoV, heat treatment HRC58-60℃ |
| Roller diameter | Φ70 mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 0.3-0.8 mm |

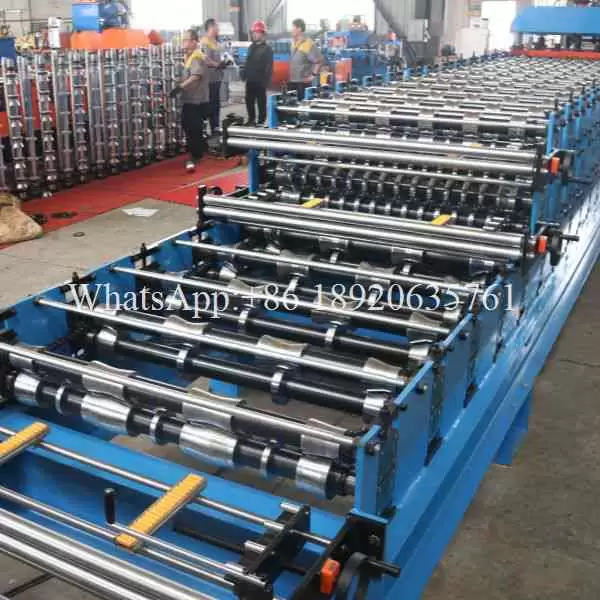

| Rows | 18+13+13 |
Advantages of the Three Layer Roof Sheet Roll Forming Machine:
Massive Space Savings: The primary benefit. Integrating three machines vertically drastically reduces factory floor space requirements compared to three separate horizontal lines. This Three Layer Roof Sheet Roll Forming Machine design is ideal for space-constrained facilities.
Rapid Profile Switching: Need to switch from producing glazed tiles to trapezoidal sheets? Simply switch production to the desired layer – no lengthy tooling changeovers or machine reconfiguration on a single deck. This drastically minimizes downtime between production runs.
Enhanced Production Flexibility: Effortlessly cater to diverse market demands. Produce small batches of different profiles efficiently without dedicating separate lines.
Reduced Capital Investment (vs. Three Separate Lines): While an investment, one Three Layer Roof Sheet Roll Forming Machine is typically more cost-effective than purchasing three independent, full roll forming lines.
Optimized Labor Utilization: Operators can manage production across the three layers more efficiently than monitoring three separate, distant machines.
The Three Layer Roof Sheet Roll Forming Machine represents a significant leap forward in roofing manufacturing technology. By vertically integrating the production capacity for glazed tile, corrugated, and trapezoidal metal sheets into one compact unit, it delivers unmatched space efficiency and production agility. The ability to switch profiles almost instantly eliminates costly changeover downtime, while the reduced footprint lowers operational costs. For roofing manufacturers seeking to maximize versatility, optimize floor space, and respond rapidly to market demands, the innovative Three Layer Roof Sheet Roll Forming Machine is the definitive solution, consolidating capability and driving efficiency like never before. This Three Layer Roof Sheet Roll Forming Machine is truly engineered for the future of flexible roofing production.
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a high-efficiency three layer roof sheet roll forming machine line. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the high-efficiency three layer roof sheet roll forming machine line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
