Metal Deck Forming Machine Line: Revolutionizing Structural Deck Production

In the dynamic world of modern construction, where speed, precision, and structural integrity are paramount, the metal deck forming machine line stands as a cornerstone technology. This highly integrated, automated production system transforms raw steel coils into the precisely profiled decking sheets essential for floors, roofs, and composite structures. Understanding the journey within a metal deck forming machine line reveals the sophistication behind this vital building component.

Roll Forming Process Workflow Diagram

More parameters

The process begins with the Decoiling and Feeding Stage. Large coils of sheet steel, typically galvanized or coated for corrosion resistance, are loaded onto powered mandrels. An automated decoiler carefully unwinds the coil, feeding the continuous strip of metal into the line. Sophisticated feed systems, often incorporating accumulators, ensure a constant, smooth, and tension-controlled supply of material to the subsequent stages, even during coil changes, maximizing uptime for the entire metal deck forming machine line.

Next, the strip enters the Leveling Stage. Residual stresses from coiling and handling can cause curvature or minor distortions. To guarantee a perfectly flat starting point for precise forming, multi-roll levelers are employed. These consist of staggered sets of hardened steel rolls, alternately bending the metal strip above and below its neutral axis. This controlled flexing effectively eliminates coil set, camber, and crossbow, resulting in a flawlessly flat sheet critical for the accuracy of the metal deck forming machine line.

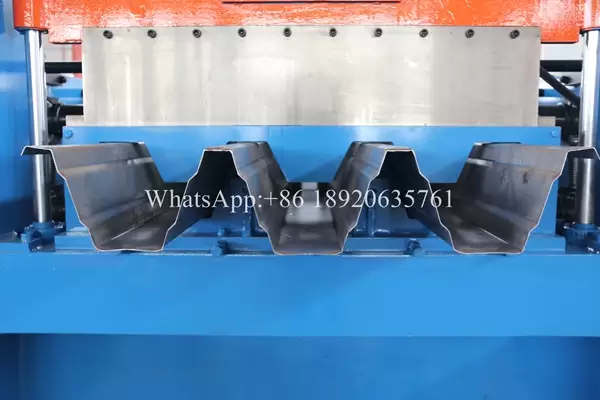

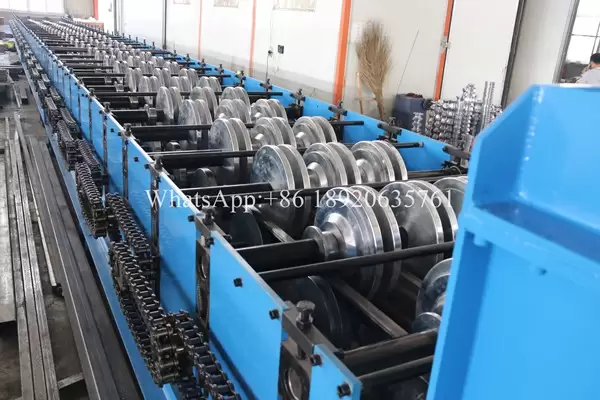

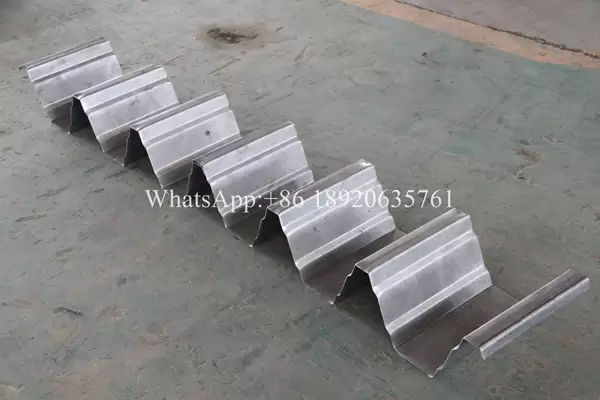

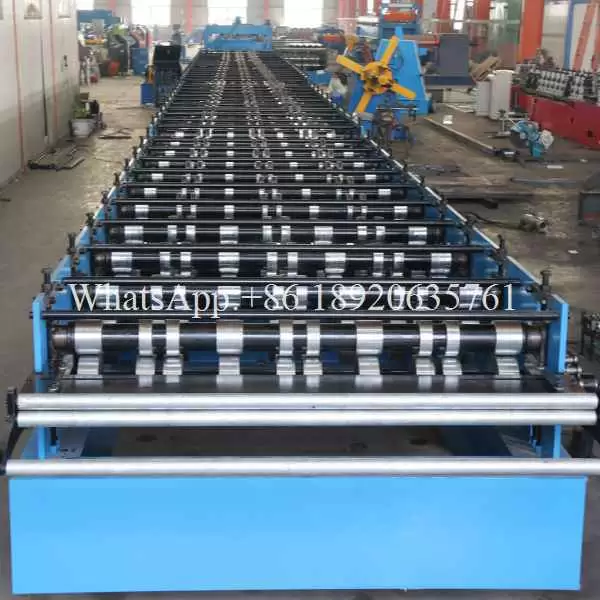

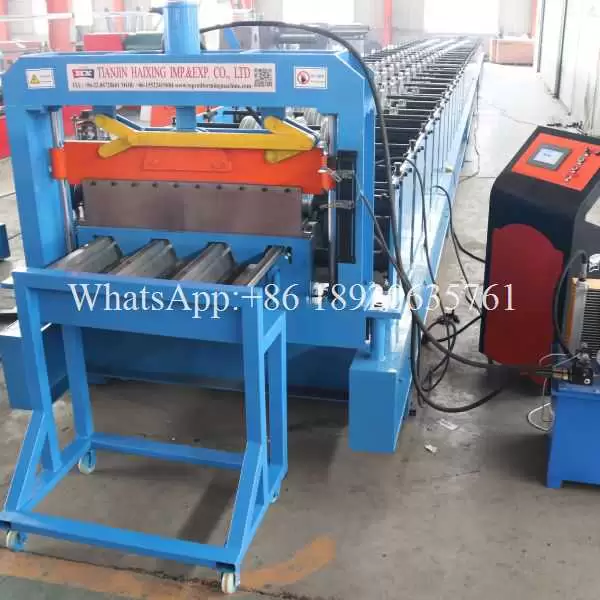

The heart of the metal deck forming machine line is undoubtedly the Roll Forming Stage. Here, the flat strip undergoes its remarkable metamorphosis. The strip passes progressively through a series of meticulously engineered roll forming stands. Each stand features precisely contoured rolls (top and bottom) that incrementally bend the metal through small angles. The geometry of these rolls is designed with extreme precision, based on complex calculations of material springback and the desired final profile. Modern metal deck forming machine lines utilize servo-driven forming stations, allowing for incredibly accurate positioning and control over the forming process. Gradually, the familiar trapezoidal ribs, embossments, side laps, and end laps characteristic of structural metal decking emerge.

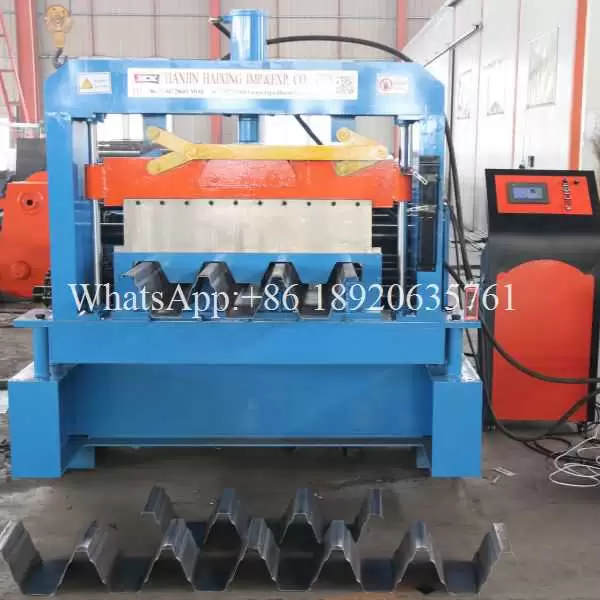

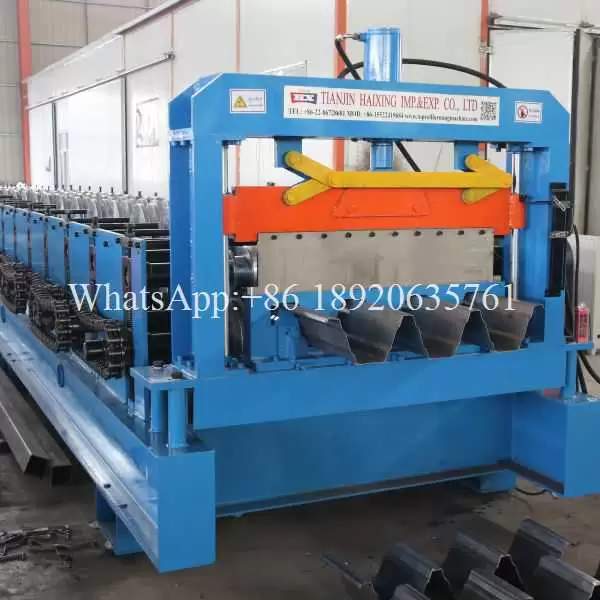

Once the full profile is achieved, the continuous deck must be cut to the exact lengths specified for the construction project. This is the task of the Hydraulic Shear Stage. When the formed deck reaches the pre-set length (measured by encoders), powerful hydraulic clamps descend to firmly secure the sheet in place. Immediately after, an extremely robust hydraulic shear, guided by hardened blades, delivers a fast, clean, and perfectly square cut. The precision here is vital (±1-2mm tolerance is common) to ensure panels fit perfectly on-site. Advanced metal deck forming machine lines feature flying cut-off systems. These sophisticated units synchronize their movement with the moving deck during the cutting cycle, allowing the line to maintain its full production speed without stopping, significantly boosting overall output compared to stop-start systems. This hydraulic cutting stage is a critical efficiency driver within the modern metal deck forming machine line.

The final step in the metal deck forming machine line is Stacking and Bundling (Piling). Cut panels are conveyed away from the shear. Automated stacking systems, often employing robotic arms, vacuum lifters, or carefully timed conveyors with tilting mechanisms, gently collect the panels. They arrange them into neat, uniform stacks, consistently oriented and aligned. Counting systems track the number of sheets per stack. Once a stack is complete, it may be automatically strapped or banded for secure handling and transport. Forklift pockets or integrated transfer systems then move the finished bundles to storage or directly onto trucks. Efficient, automated stacking protects the finished product and minimizes manual handling, completing the cycle of the metal deck forming machine line.

The metal deck forming machine line is far more than just a collection of machines; it represents a sophisticated, engineered solution. By seamlessly integrating decoiling, precision leveling, progressive roll forming, high-speed hydraulic shearing, and automated stacking, this line transforms raw steel into a vital building component with remarkable speed, accuracy, and efficiency. As construction methods evolve towards greater prefabrication and faster build times, the role of the advanced metal deck forming machine line becomes increasingly indispensable. It is the silent engine driving the creation of the sturdy, reliable floors and roofs that form the skeletons of our modern built environment, enabling safer, faster, and more cost-effective construction worldwide. The continuous innovation in metal deck forming machine line technology promises even greater levels of performance and integration in the years to come.

Our photos with our customers

About us

HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for the Professional metal deck forming machine line. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the Professional metal deck forming machine line be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
