Two Wave Highway Guardrail Making Machine
Enhancing Road Safety Standards with Our Advanced Two Wave Highway Guardrail Making Machine
The critical importance of highway safety cannot be overstated in modern transportation infrastructure. As vehicles become faster and roads more complex, the need for reliable, high-performance safety barriers has never been greater. Our company, as a specialized manufacturer with extensive expertise in cold roll forming technology, is proud to introduce our precision-engineered Two Wave Highway Guardrail Making Machine. This complete production line represents the pinnacle of manufacturing excellence, specifically designed to produce the essential two-wave guardrails that form the first line of defense on highways worldwide, effectively redirecting vehicles and preventing serious accidents.
Workflow Diagram
More parameters
| Product Name | Two Wave Highway Guardrail Making Machine |
| Punching | Three groups, one group of middle holes and two groups of side holes |
| Structure | 500H Beam |

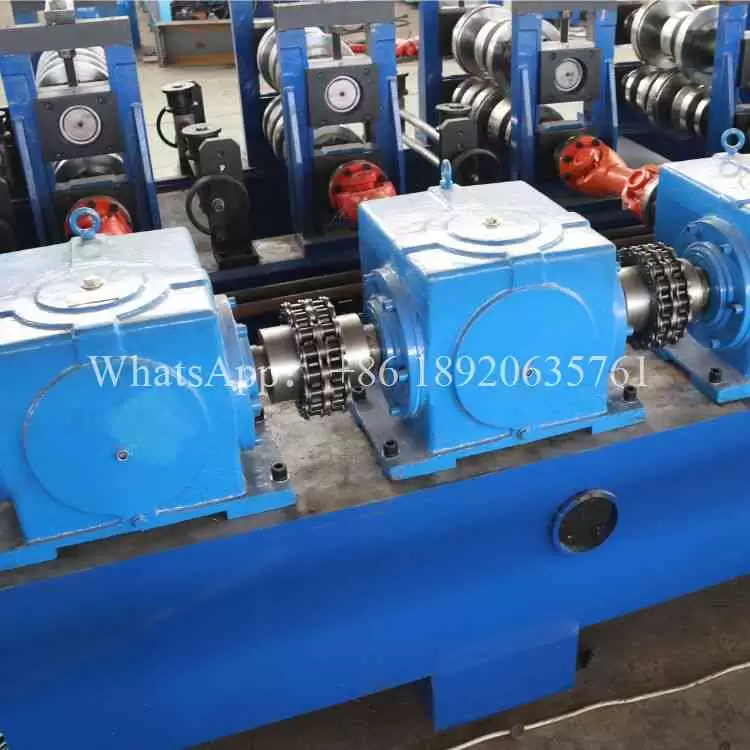

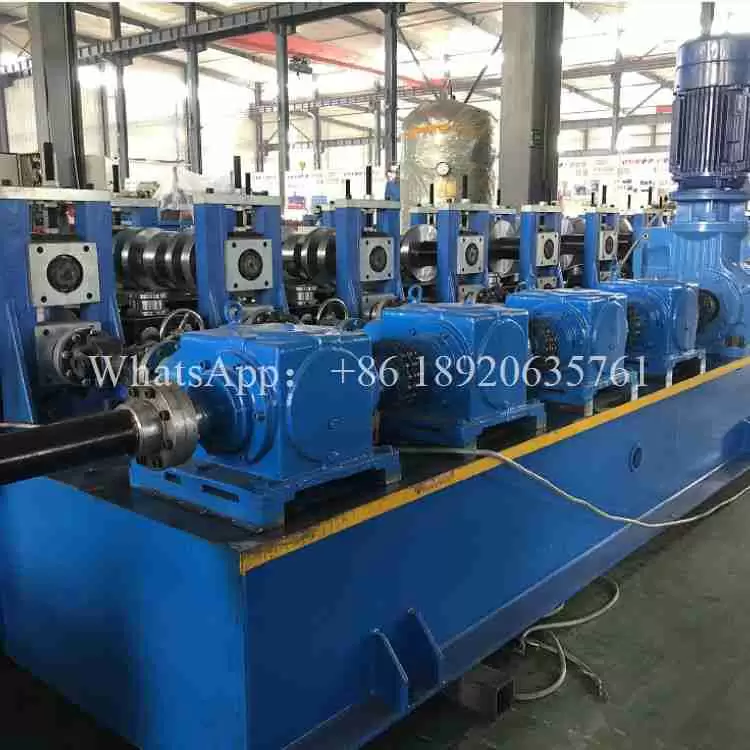

| Main motor power | Dual 22KW motors + K107 reducer |

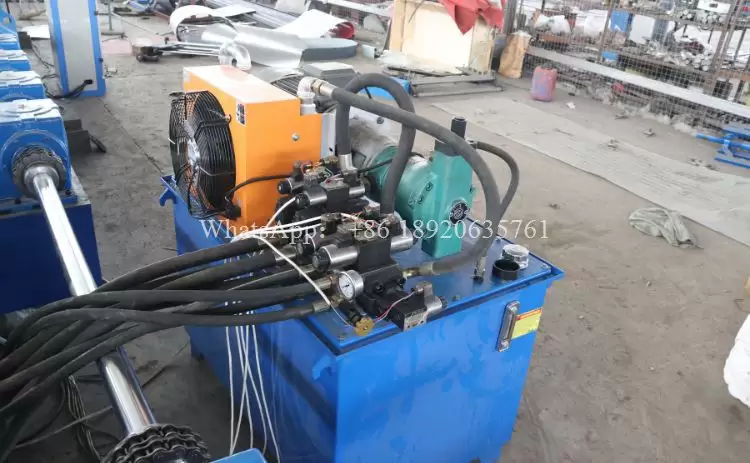

| Hydraulic station motor power | 22kw |
| Cutting type | Hydraulic three-piece shear |
| Produce speed | 5-15m/min |
| Shaft material | Cr12MoV |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| Rolling materials | High quality CR12 quenching |
| Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| Roller diameter | Φ120mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 2.0-4.0mm |
| Rows | 15-18 |
| Size | 14 meters long × about 2.4 meters wide |
| Voltage | 380V |
| Feeding width | 465- 475mm |

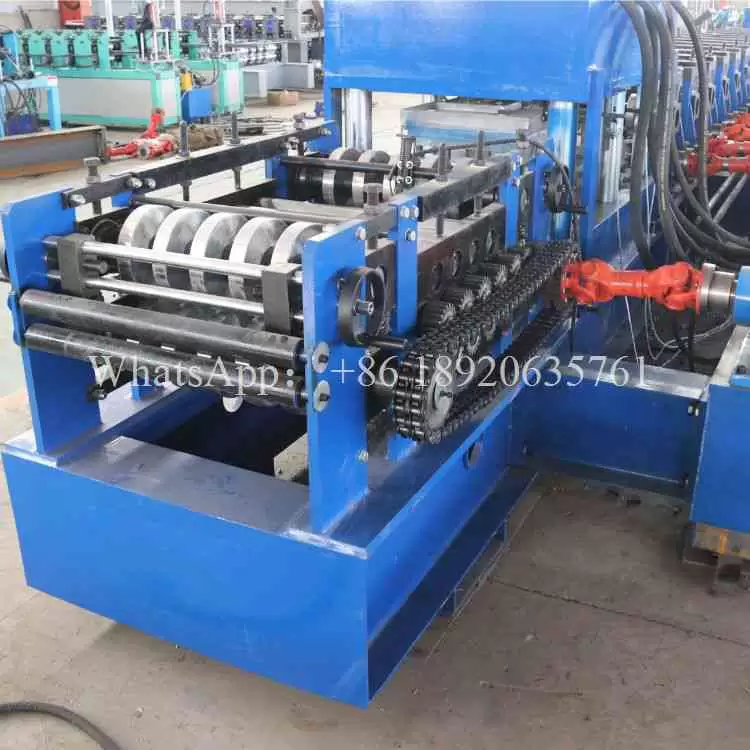

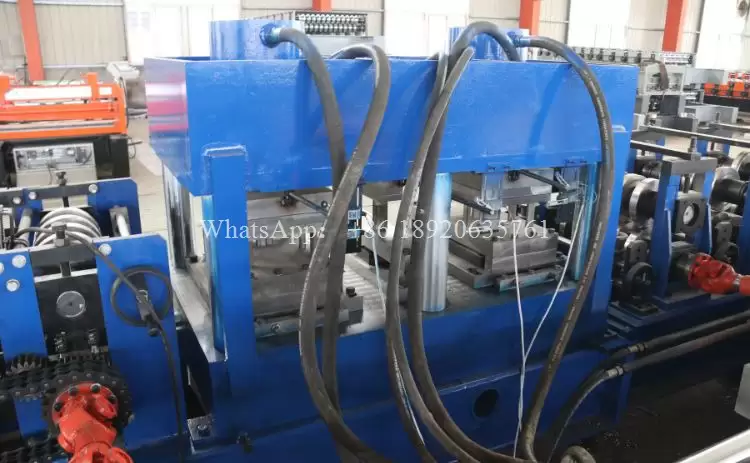

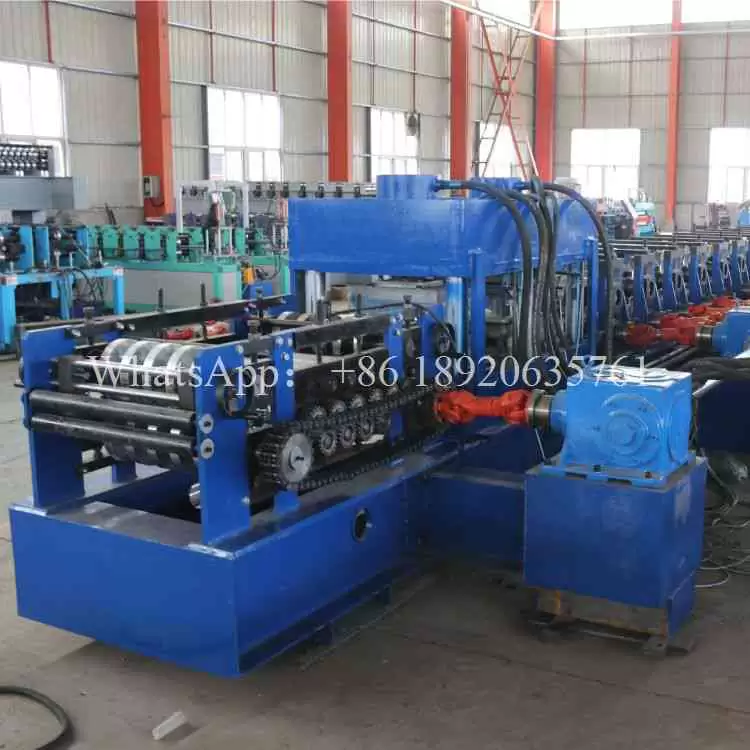

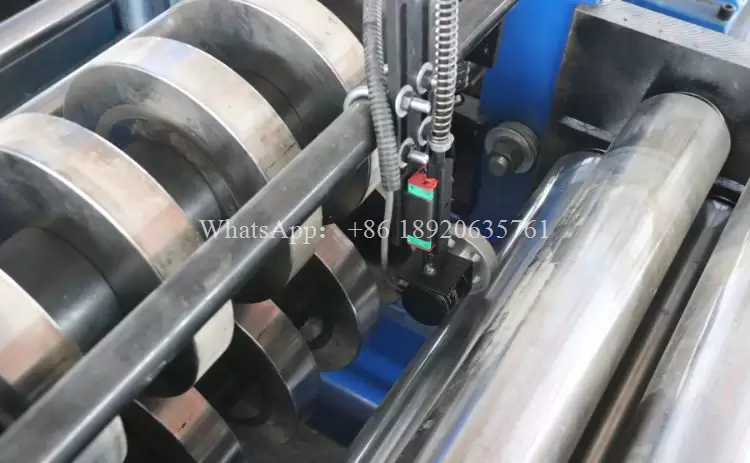

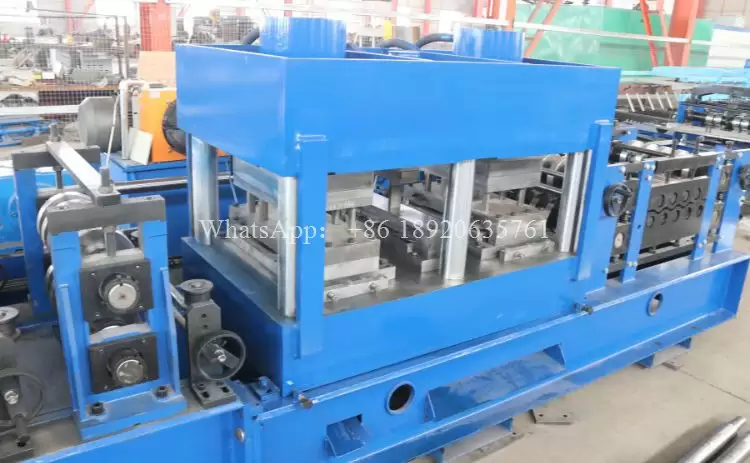

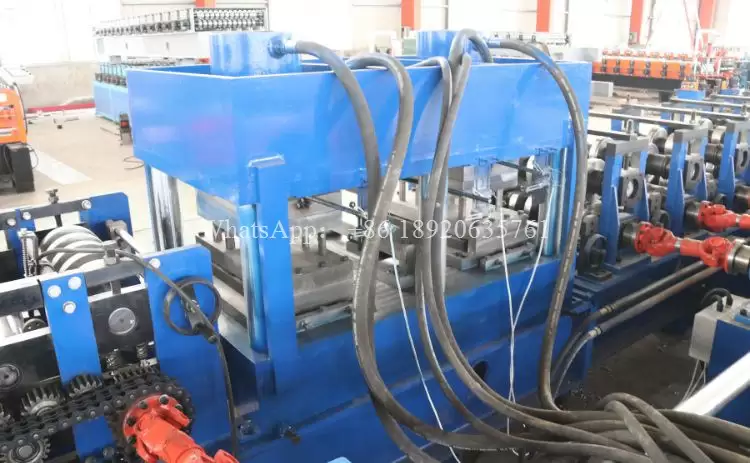

Our Two Wave Highway Guardrail Making Machine incorporates a sophisticated, automated process that ensures consistent quality and high production efficiency. The manufacturing process begins with the automatic uncoiling of steel strips, which are then fed into the system. The material proceeds through precision leveling to ensure perfect flatness before entering the crucial roll forming stages. The heart of this Two Wave Highway Guardrail Making Machine is its precisely calibrated forming stations, where the distinctive two-wave profile is gradually shaped through a series of computer-designed rollers. This is followed by an accurate punching system that creates the necessary connection holes according to standardized specifications. The continuous formed guardrail is then cut to exact lengths by a flying shear system, maintaining consistent profile integrity. Finally, an automated stacking device organizes the finished guardrails for convenient handling and shipment.
The production efficiency of our Two Wave Highway Guardrail Making Machine is remarkable, capable of producing high-quality guardrails at speeds that meet the demands of large-scale infrastructure projects. More importantly, every guardrail produced maintains consistent dimensional accuracy and mechanical properties.
We understand that different projects may have specific requirements. While the two-wave profile is standardized, our Two Wave Highway Guardrail Making Machine can be customized to accommodate variations in material thickness, coating specifications, and minor design adjustments. To facilitate quick project implementation, we maintain our commitment to providing comprehensive technical drawings within three days of receiving your specifications. Our engineering team works diligently to ensure every detail meets your expectations before production begins.
Beyond the machine itself, we provide comprehensive technical support that sets us apart. Our experienced engineers offer remote commissioning services and real-time video guidance for operation and maintenance. Through live video sessions, we can assist with troubleshooting, optimize production parameters, and provide operational training for your team. This remote support capability ensures that your Two Wave Highway Guardrail Making Machine maintains optimal performance throughout its lifecycle, regardless of your geographical location.
The durability and reliability of the guardrails produced by our Two Wave Highway Guardrail Making Machine are verified through rigorous quality control measures. Each component undergoes thorough inspection to ensure it meets the highest standards of impact resistance and corrosion protection. This commitment to quality means that the guardrails manufactured using our equipment will provide decades of reliable service, protecting lives and reducing the severity of accidents on highways around the world.
Investing in our Two Wave Highway Guardrail Making Machine represents not just a business decision, but a commitment to public safety. Municipalities, construction companies, and guardrail manufacturers who choose our equipment are investing in technology that directly contributes to safer road infrastructure. The combination of advanced technology, consistent quality, and comprehensive support makes our Two Wave Highway Guardrail Making Machine the ideal choice for professionals dedicated to excellence in highway safety equipment manufacturing.
As road networks continue to expand and evolve, the demand for high-quality safety barriers will only increase. Our Two Wave Highway Guardrail Making Machine provides manufacturers with the capability to meet this growing demand efficiently and reliably. By incorporating advanced automation technology with proven roll forming expertise, we have created a system that not only maximizes productivity but also ensures that every guardrail produced offers the highest level of protection for motorists. This commitment to quality and safety makes our Two Wave Highway Guardrail Making Machine an invaluable asset for any company involved in highway safety infrastructure development.
Application Scenario
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Two Wave Highway Guardrail Making Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Two Wave Highway Guardrail Making Machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
