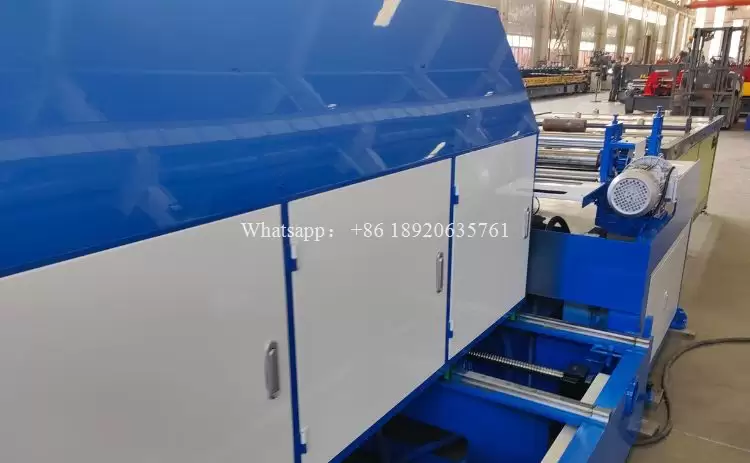

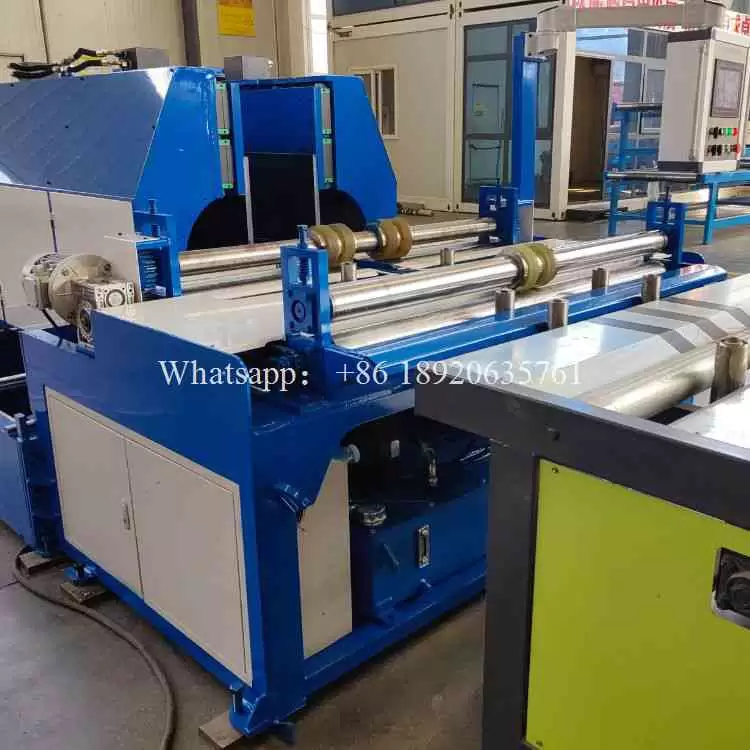

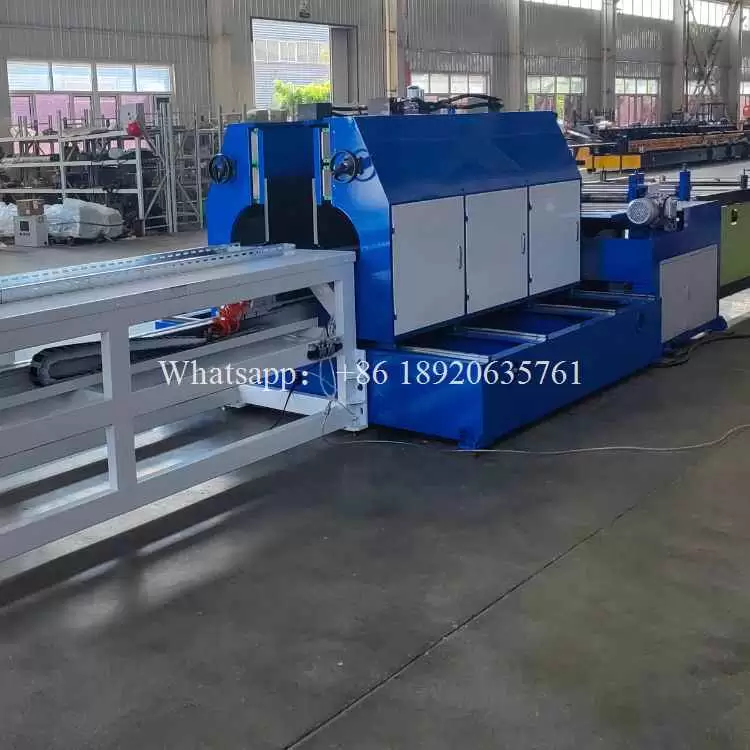

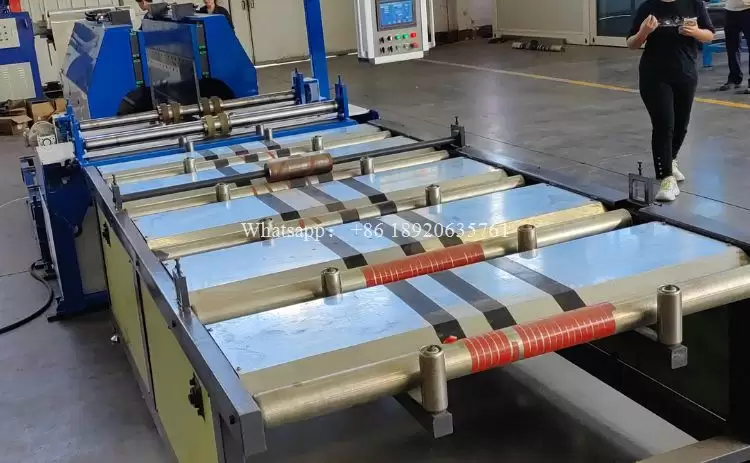

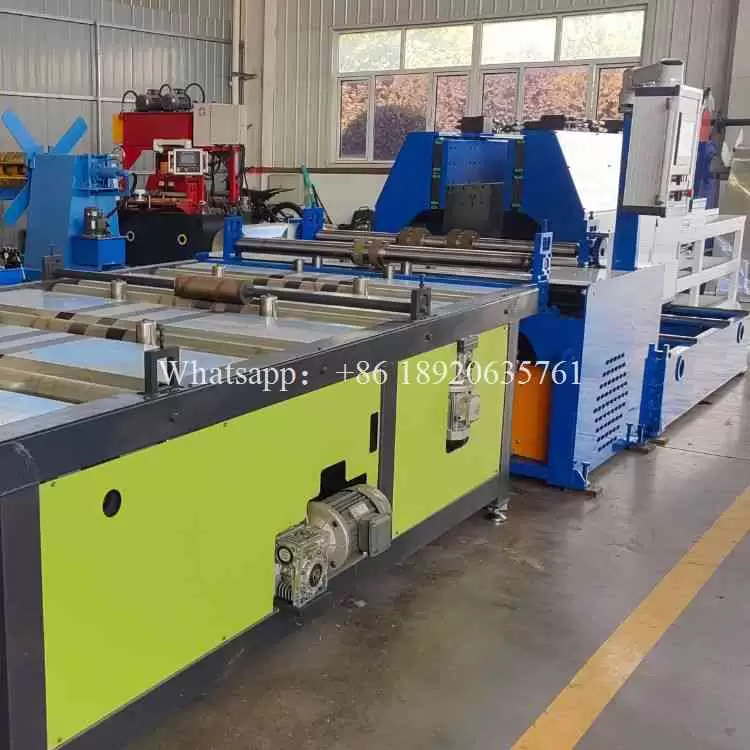

cable tray bending machine
Precision and Efficiency Redefined with Our Cable Tray Bending Machine
As a professional manufacturer of cold roll forming machinery, we provide high-performance fabrication equipment designed to meet evolving industrial needs. Our flagship product, the Cable Tray Bending Machine, offers unmatched versatility and reliability for producing cable management supports with consistent accuracy.
Workflow Diagram
This Cable Tray Bending Machine enables customized bending solutions for a wide variety of shapes—including horizontal, vertical, and multiple-radius bends—as well as adjustable widths to suit specific project requirements. Whether you are working with ladder-type, trough, or channel-style cable trays, this machine ensures precise and repeatable bending operations, significantly enhancing production efficiency and product quality.
We prioritize rapid response and technical support. Within three working days, our engineering team can provide detailed design drawings based on your specifications, accelerating the preparation process and helping you move quickly to production. Moreover, to ensure seamless operation worldwide, we offer remote expert guidance through live video support. Our engineers are available to assist with installation, troubleshooting, and maintenance, providing virtual warranty service that reduces downtime and operational risks.
Ideal for electrical contractors and cable tray manufacturers, this Cable Tray Bending Machine combines innovative technology with user-centered design. It simplifies complex bending tasks while maintaining structural integrity and dimensional accuracy of trays.
Choose our Cable Tray Bending Machine for a smarter, more connected manufacturing experience. Let us help you elevate your production capabilities with advanced equipment and global support.
More parameters
| Product Name | Cable Tray Bending Machine |

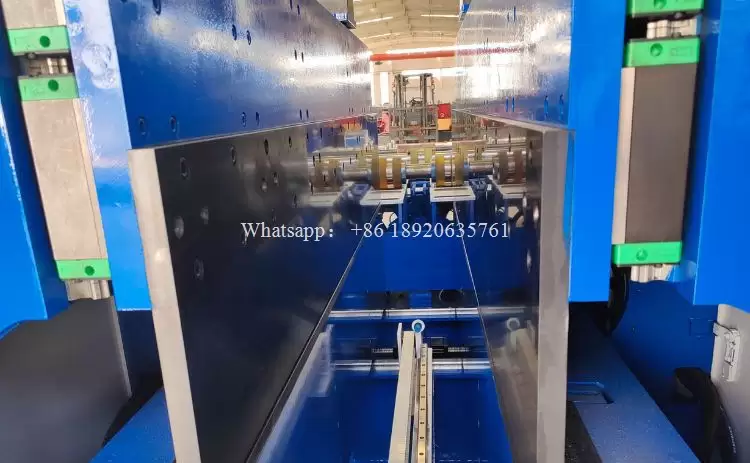

| CNC bending part | Automatic feed port identification Servo opening and closing Precision-ground forming tools Opening and closing motor power (5.5kW) |

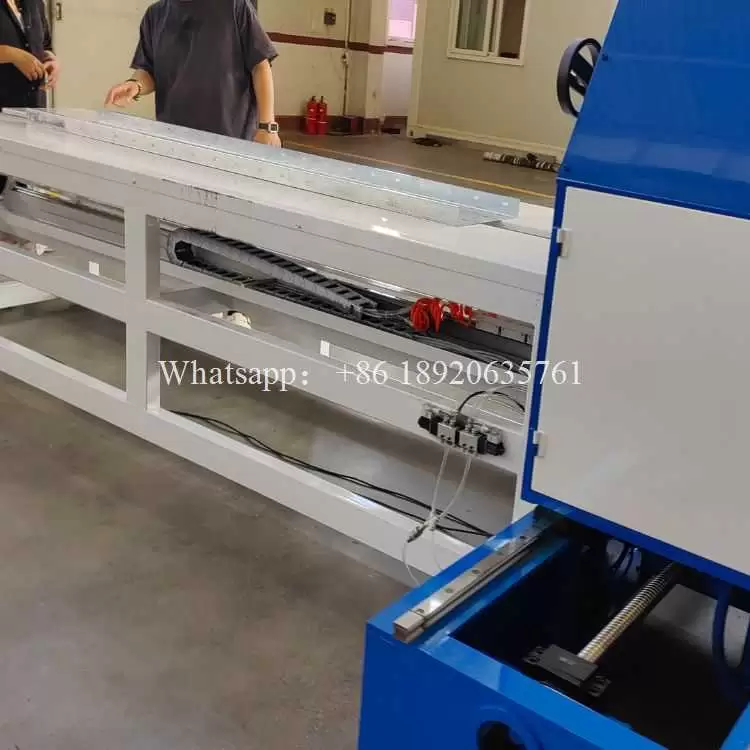

| Discharging station | 4-meter servo-assisted discharge Main motor power (1.5 kW) Anti-collision material limiter |
| Hydraulic station | Multiple solenoid valves Solenoid overflow valve Cooling system Motor power (7.5 x 2) kW Oil tank capacity (400 liters) |
| Produce speed |
4-6 m/min |
| Rolled strip material | Q235 cold rolled sheet, galvanized sheet |
| Voltage | 380V，50Hz，3p be customized |
| Feeding thickness | 1.5(±0.03)—2.0(±0.03) mm |
| Equipment footprint | 6.5×2.5×2M |
| Feeding width | 200-1250 mm |
| Molding specifications | 800/200-100/50 (single and double folding) |
Our Certificate
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a CNC Cable Tray Bending Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the CNC Cable Tray Bending Machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
Transportation and delivery
