Automated Cable Tray Production Line Manufacturing System
Elevate Your Industrial Capabilities with Our Automated Cable Tray Production Line Manufacturing System
In the fast-evolving world of cable management solutions, manufacturers are constantly seeking ways to enhance productivity, ensure precision, and maintain flexibility. Our Automated Cable Tray Production Line Manufacturing System is designed to meet these exact needs, delivering an end-to-end solution that integrates advanced engineering with user-friendly operation. This all-in-one system efficiently performs every critical stage of production, including uncoiling, leveling, hydraulic shearing, punching, and precision roll forming, ensuring that each cable tray produced meets the highest standards of quality and consistency.
Workflow Diagram
What distinguishes our Automated Cable Tray Production Line Manufacturing System is its unparalleled customization capacity. Every detail—from the tray profile and hole design to the material feed width and thickness—can be tailored to your project’s unique specifications. We understand the importance of speed in manufacturing, which is why we guarantee the delivery of accurate and detailed production drawings within just three days after order confirmation. This enables you to move swiftly from concept to production, reducing lead times and accelerating time-to-market.
To ensure seamless integration and operation, we provide end-to-end professional support. Our experienced engineers offer remote quality assurance and real-time troubleshooting through live video guidance, helping you optimize performance, minimize downtime, and achieve maximum output with minimal effort. This dedicated service underscores our commitment to building long-term partnerships rather than simply supplying machinery.
Whether you are a new market entrant or an established manufacturer aiming to expand your capabilities, our Automated Cable Tray Production Line Manufacturing System offers the reliability, adaptability, and intelligence required to excel in a competitive industry. By choosing our system, you are not only investing in advanced technology but also gaining a strategic partner dedicated to your success.
More parameters
| Product Name | Automated Cable Tray Production Line Manufacturing System |

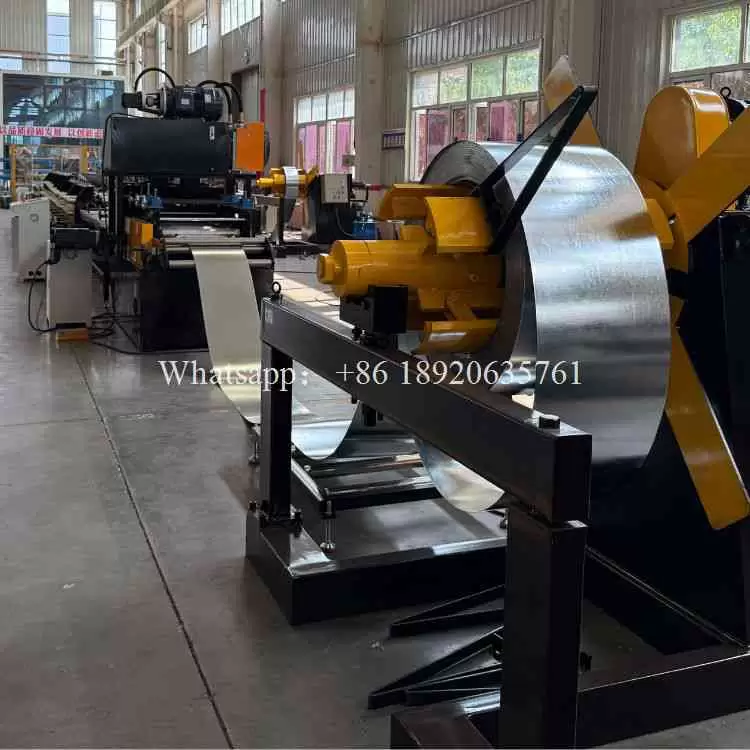

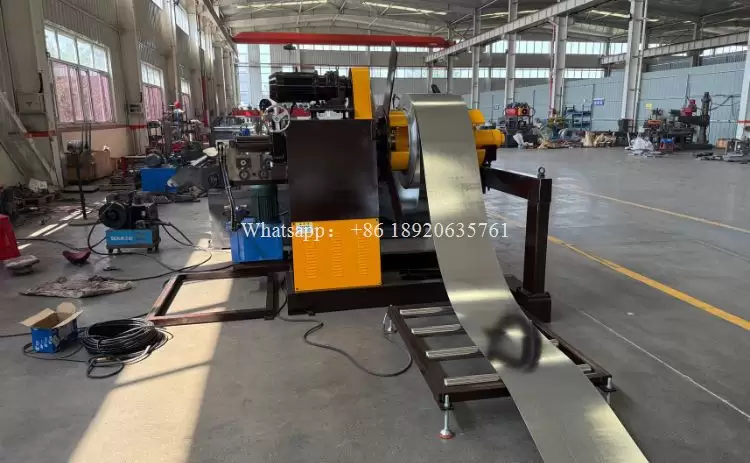

| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |

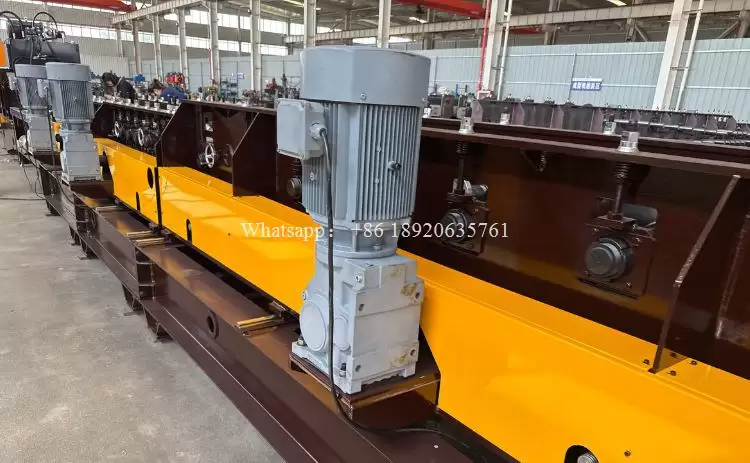

| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |

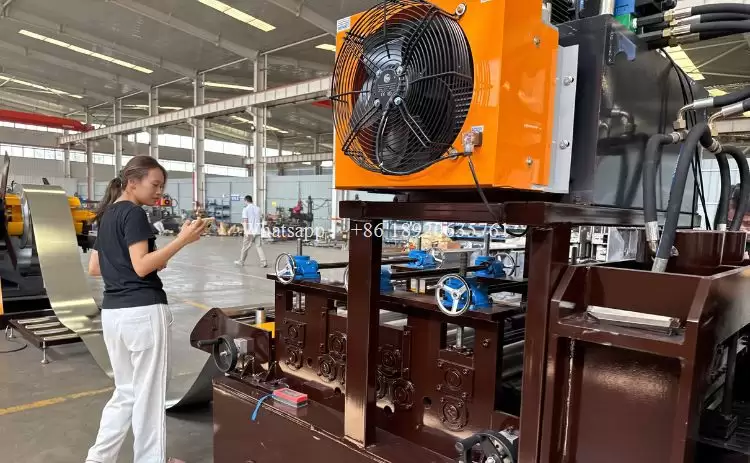

| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |

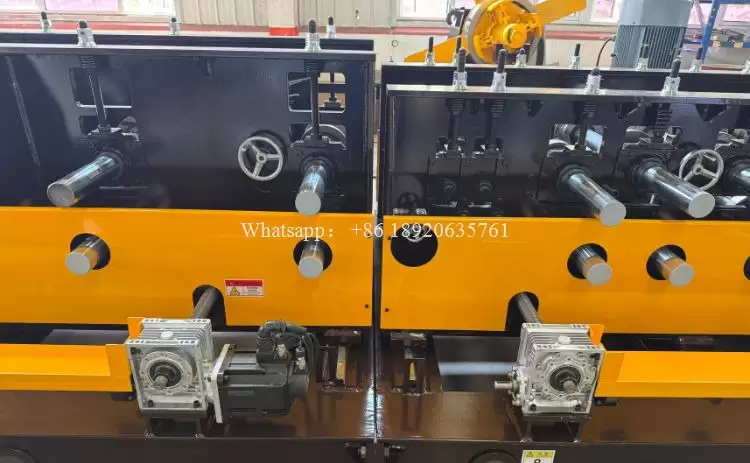

| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |

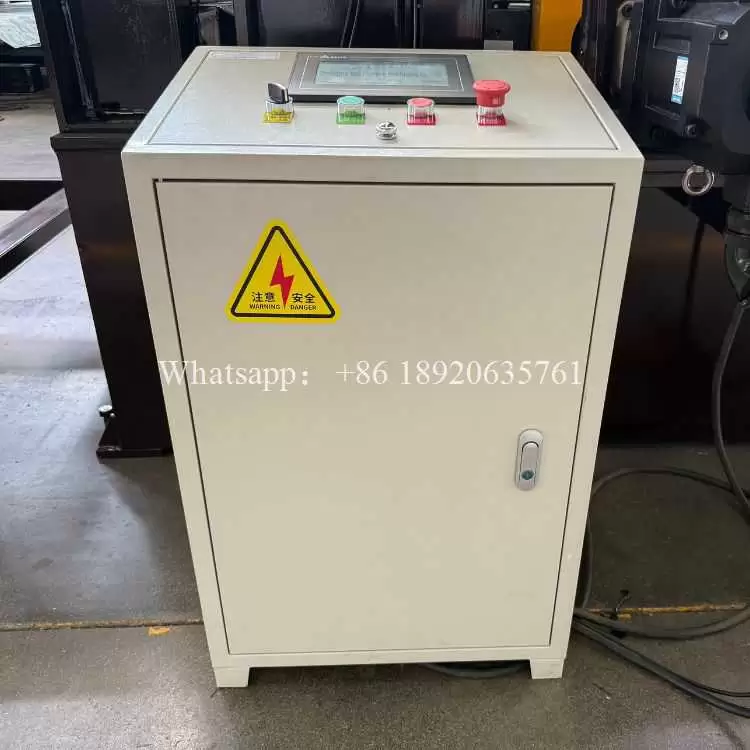

| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |

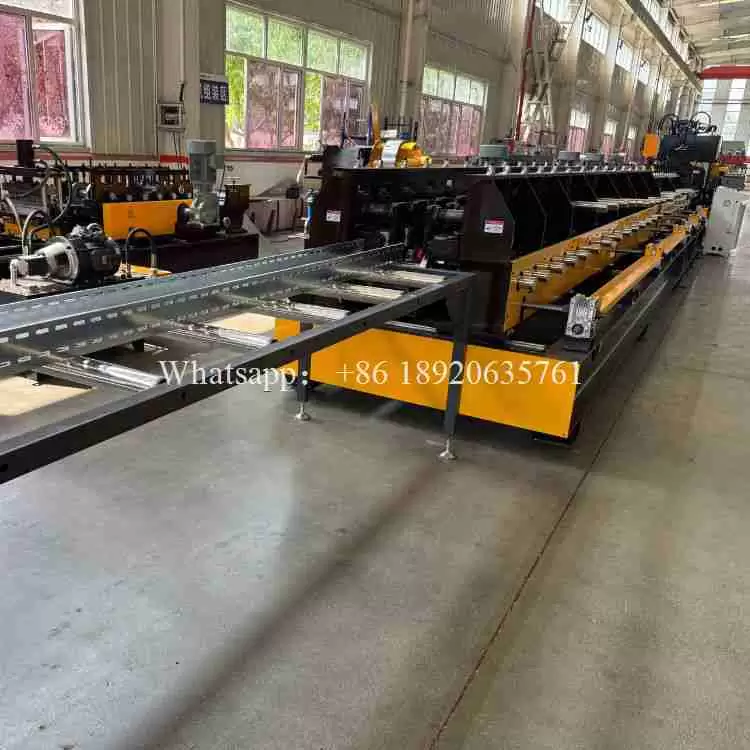

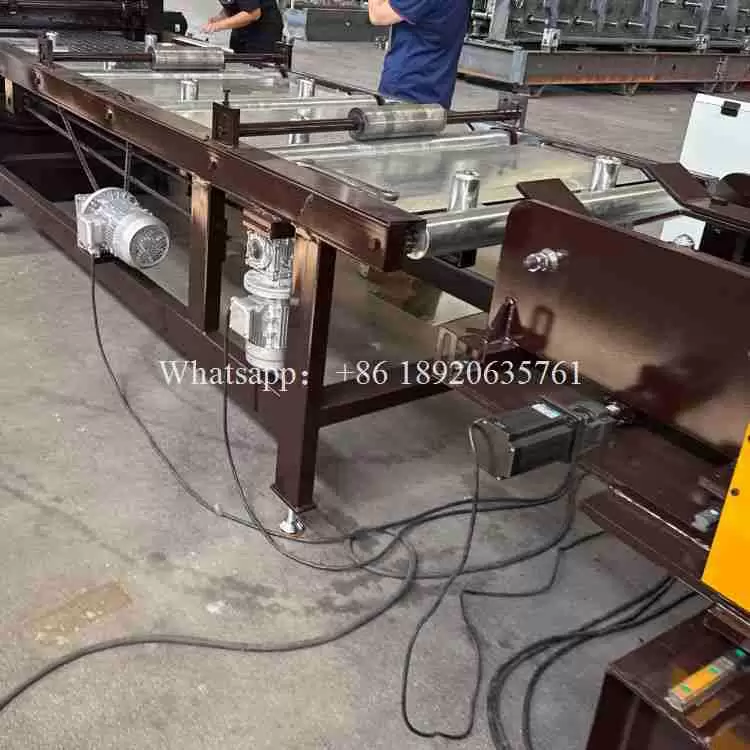

| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |
| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |

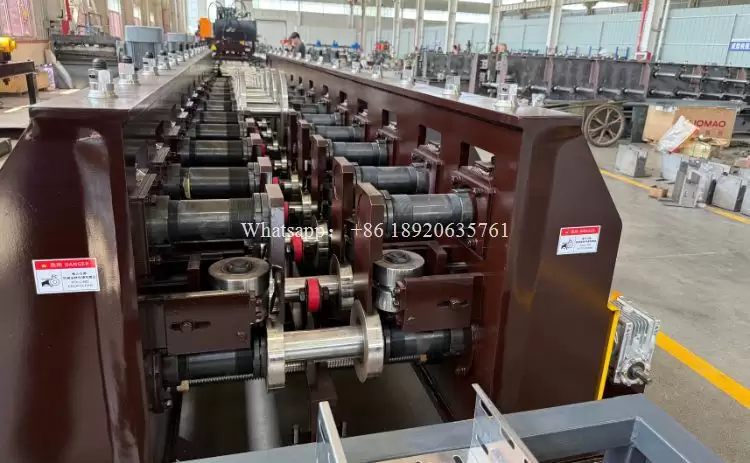

| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
