Automated cable tray production line
Revolutionize Your Manufacturing with Our Automated Cable Tray Production Line

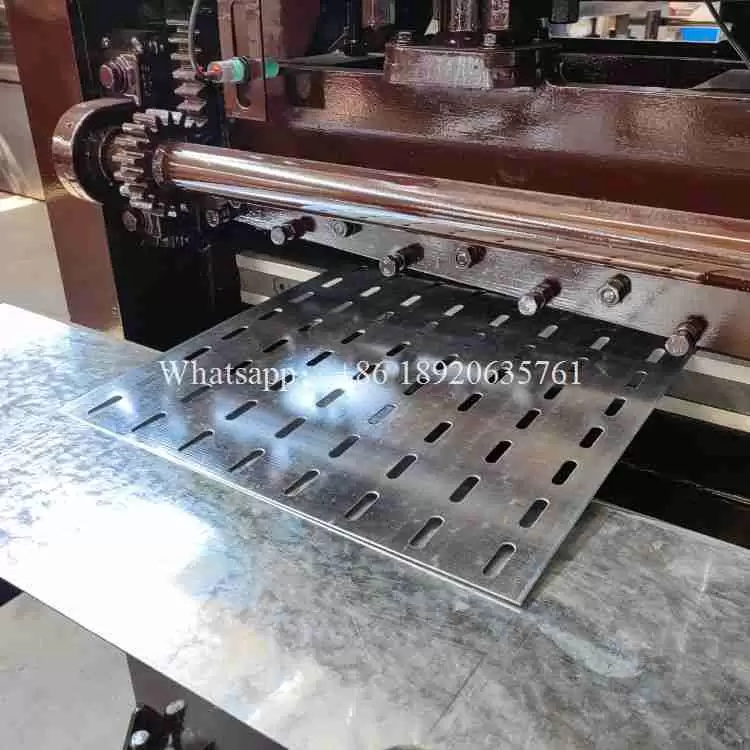

In an industry where precision, speed, and reliability are non-negotiable, our Automated Cable Tray Production Line stands out as a premier solution for manufacturers worldwide. This integrated system is engineered to handle the entire fabrication process seamlessly, from uncoiling and leveling to hydraulic cutting, precise punching, and high-quality roll forming. By automating these critical steps, our production line ensures consistent output, reduces labor costs, and minimizes operational errors.
Workflow Diagram
What truly sets our Automated Cable Tray Production Line apart is its exceptional flexibility. Every aspect—including the tray profile, hole patterns, material width, and thickness—can be fully customized to meet your specific project requirements. We accelerate your time-to-market by delivering detailed design drawings within just three days of order confirmation.
Beyond the machinery itself, we provide dedicated technical support to keep your operations running smoothly. Our engineers offer remote quality assurance and real-time guidance through online video sessions, ensuring quick setup, troubleshooting, and optimal performance wherever you are.
Ideal for both expanding producers and new market entrants, our Automated Cable Tray Production Line combines robust construction with smart automation to enhance your productivity and product quality. Choose our system to elevate your manufacturing capability and strengthen your competitive edge in the cable tray industry.
More parameters
| Product Name | Automated cable tray production line |

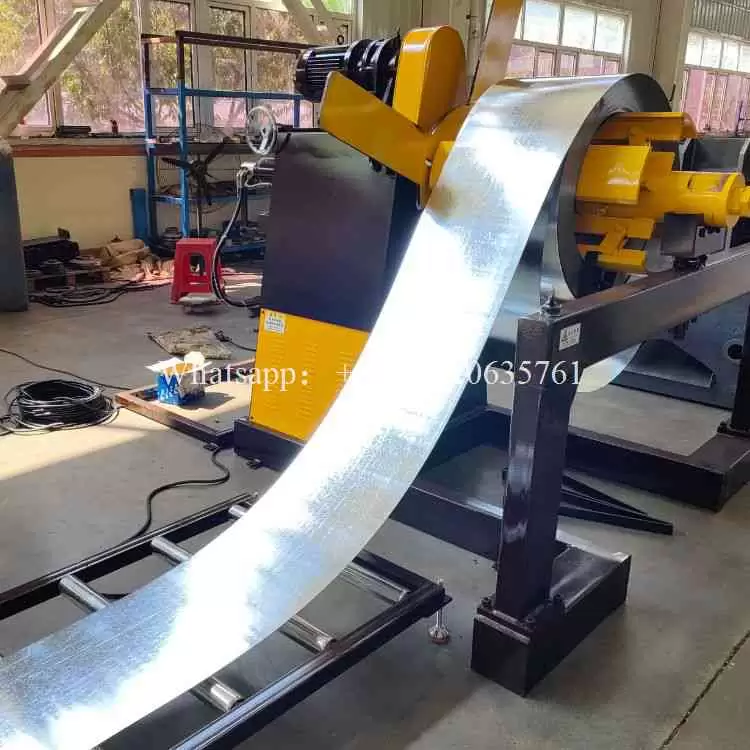

| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |

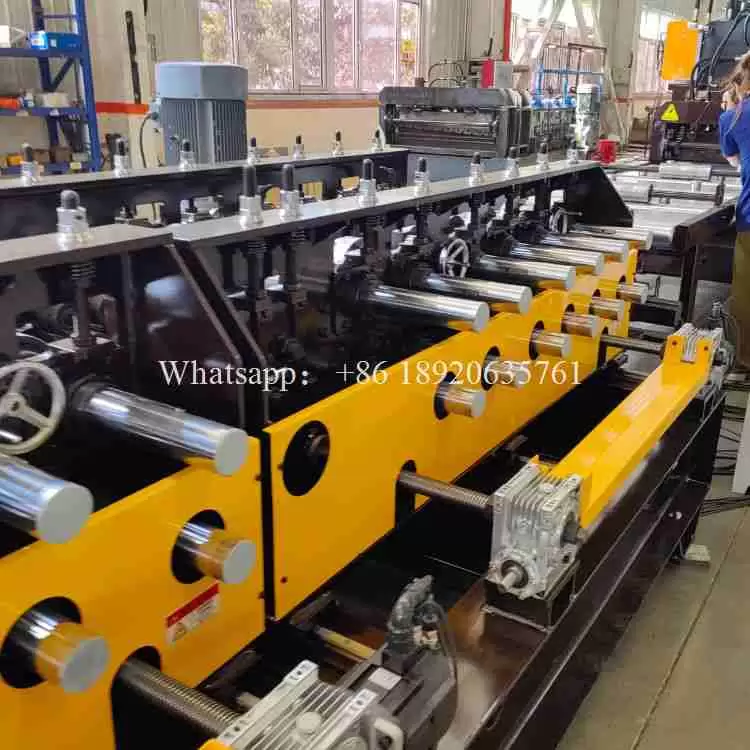

| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |
| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |

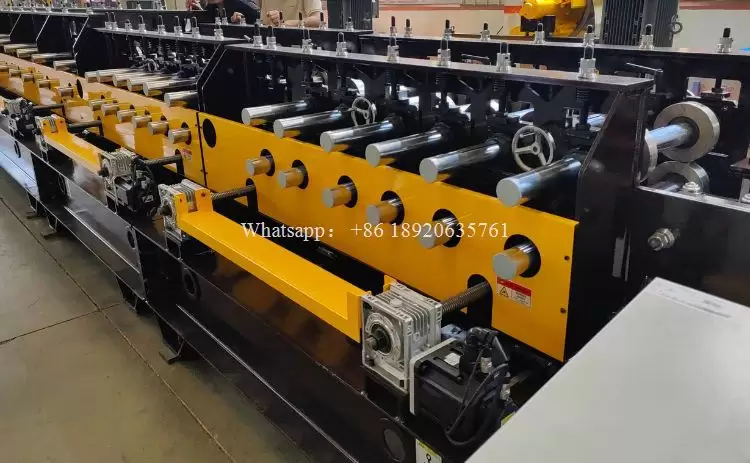

| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |

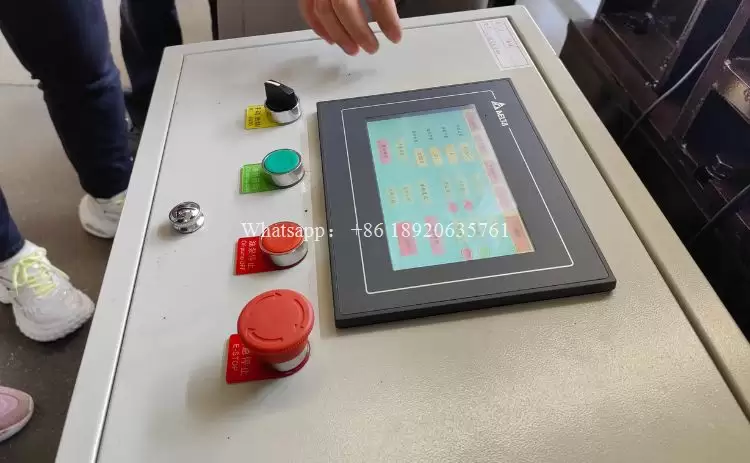

| Touch screen/inverter | Delta or customized according to customer requirements |
| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |
| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
Application Scenario
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
