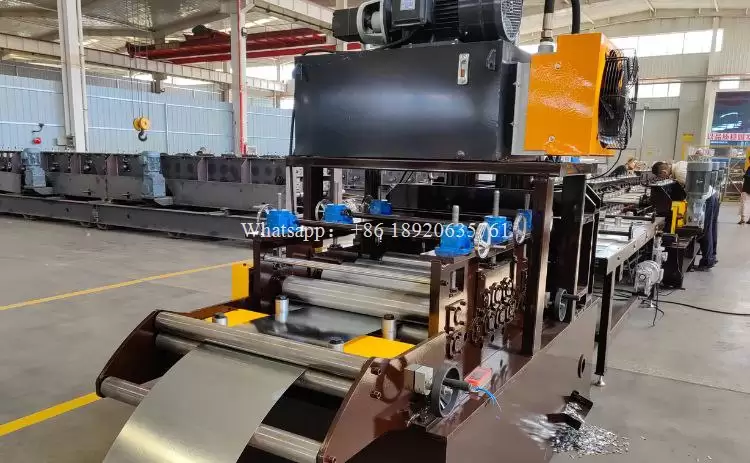

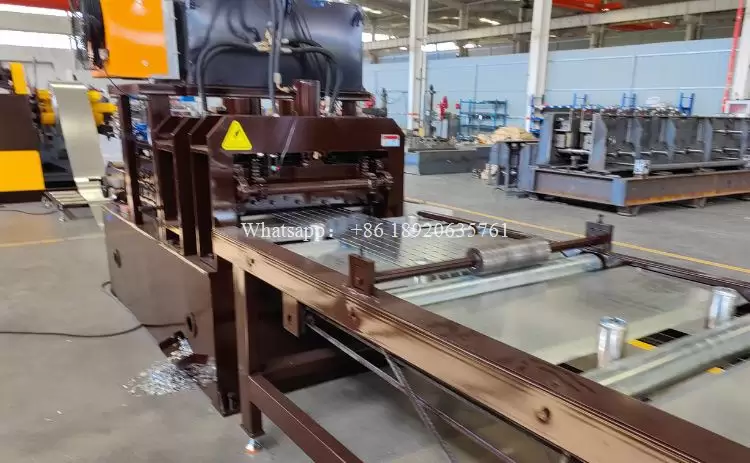

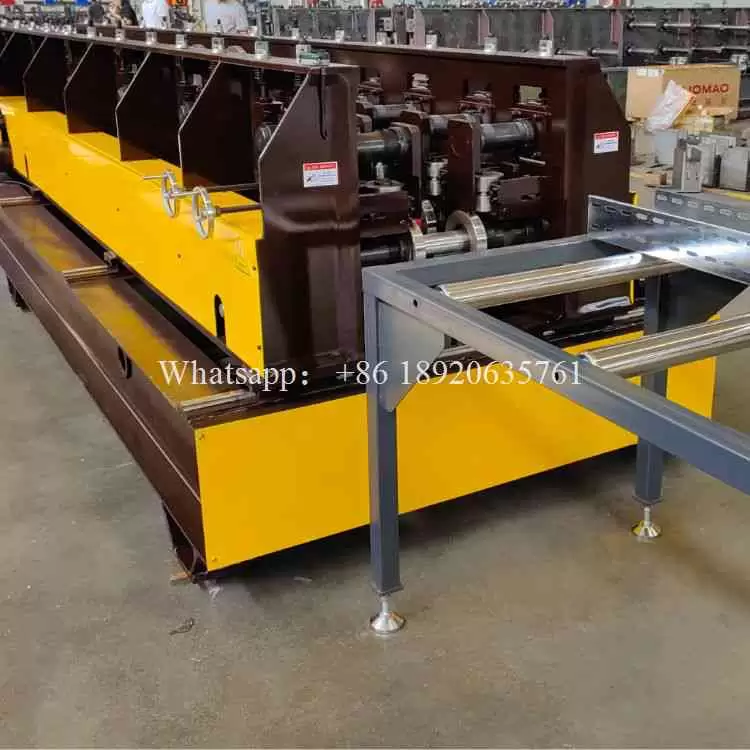

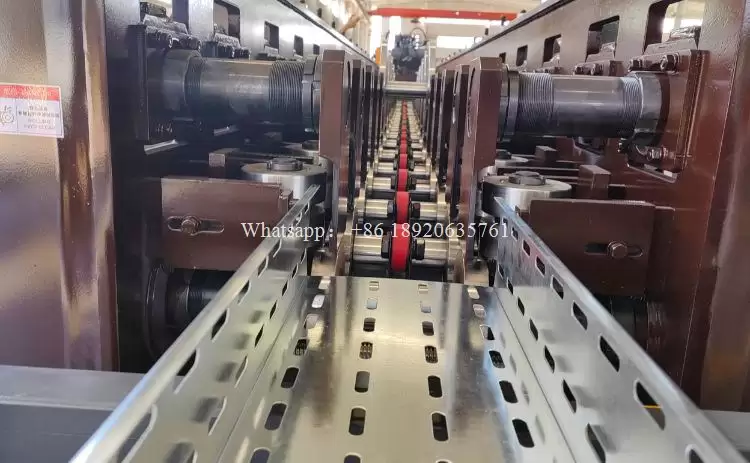

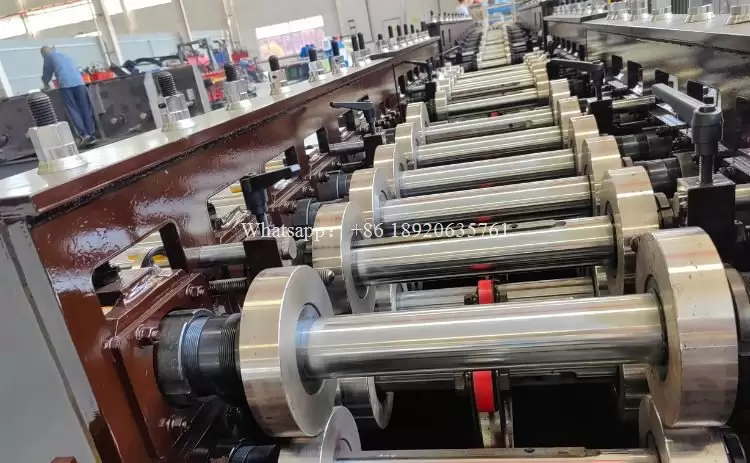

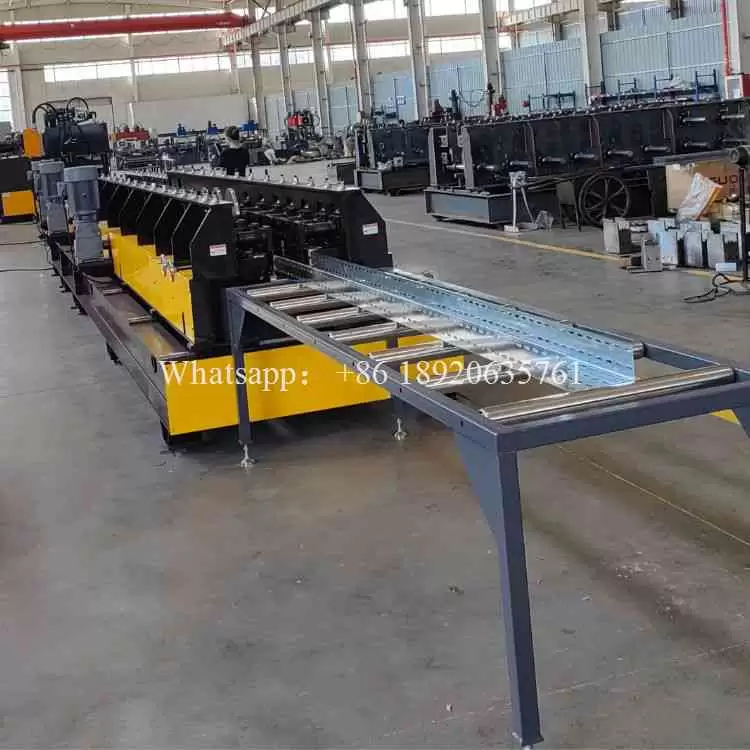

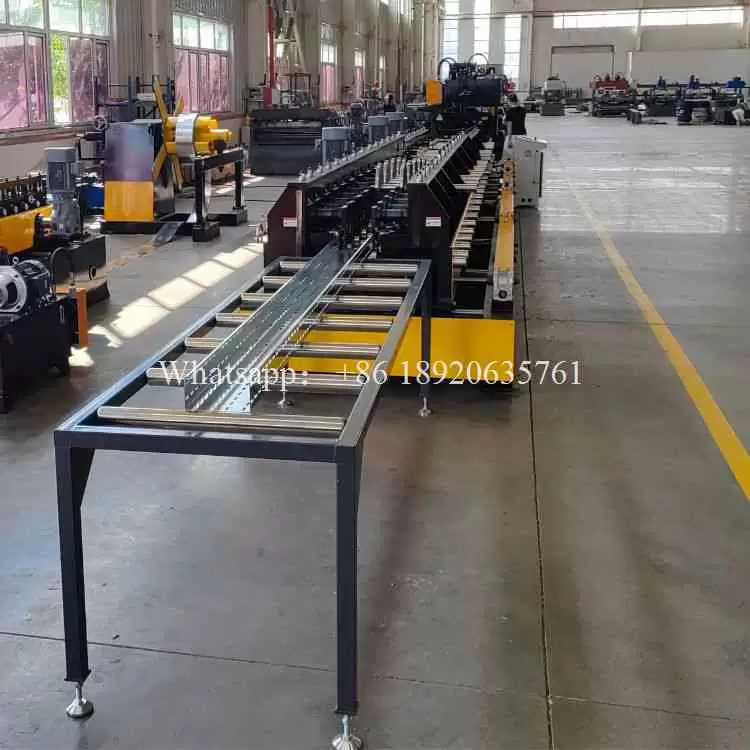

Cable Tray Making Roll Forming Machine
Unlock Manufacturing Excellence with Our Advanced Cable Tray Making Roll Forming Machine
In an industry where precision, efficiency, and adaptability define success, our Cable Tray Making Roll Forming Machine offers a complete end-to-end manufacturing solution designed to meet the highest standards. This fully integrated production system seamlessly combines essential processes such as uncoiling, leveling, hydraulic cutting, punching, and precision roll forming, enabling the continuous and high-quality production of cable trays for a wide range of industrial applications.
Workflow Diagram
A key strength of our Cable Tray Making Roll Forming Machine lies in its exceptional flexibility. Every element—from the profile and dimensions of the tray to the position, shape, and size of the holes, as well as material width and thickness—can be fully customized to match specific customer requirements. We are committed to accelerating your time to production, which is why we provide detailed and accurate technical drawings within just three days after order confirmation.
To further ensure operational success, we include comprehensive remote engineering support. Our team of experienced engineers is available for online video guidance, real-time troubleshooting, and quality assurance checks, helping you achieve smooth installation, minimize downtime, and maintain consistent product quality. This proactive support system makes our Cable Tray Making Roll Forming Machine not just a piece of equipment, but a long-term partnership dedicated to your growth and productivity.
Whether you are entering the cable tray market or expanding your manufacturing capacity, this robust and intelligent system is engineered to enhance output, reduce labor costs, and improve overall efficiency. By choosing our Cable Tray Making Roll Forming Machine, you are investing in reliable technology, expert support, and a future-ready production framework.
More parameters
| Product Name | Cable Tray Making Roll Forming Machine |

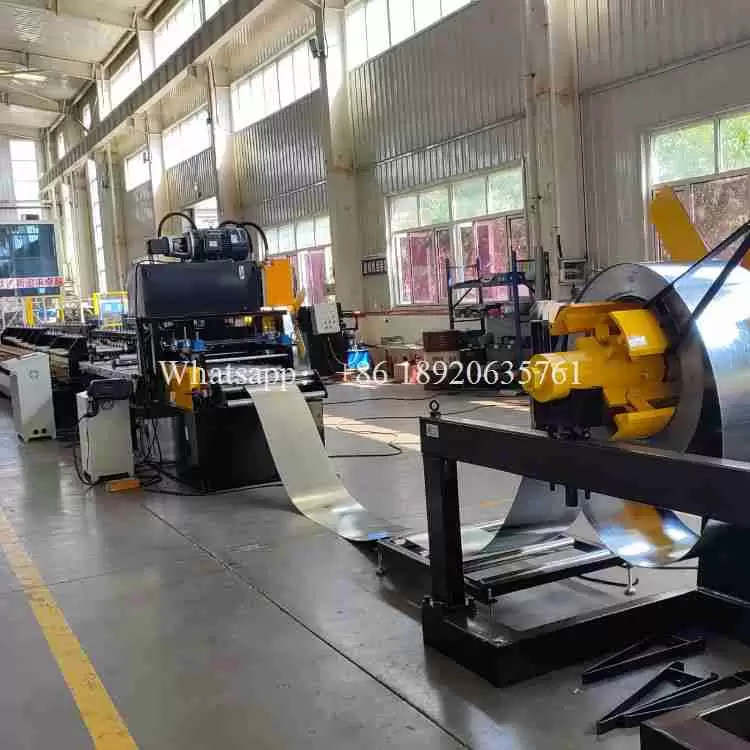

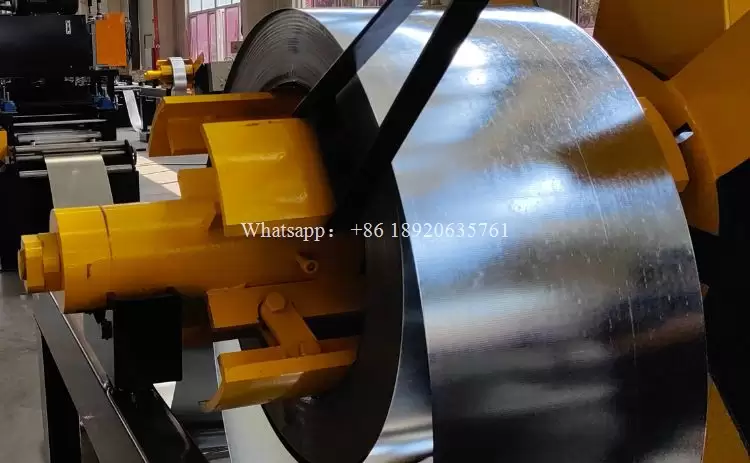

| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |
| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |
| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |
| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |
| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
