Cable Tray Machine
Enhancing Industrial Efficiency with Advanced Cable Tray Machine
As a professional manufacturer of roll forming equipment, we take pride in introducing our state-of-the-art Cable Tray Machine, designed to revolutionize your cable tray production process. This comprehensive Cable Tray Machine integrates multiple manufacturing steps into one seamless operation, ensuring superior quality and exceptional efficiency in producing cable trays for various industrial applications.
Workflow Diagram

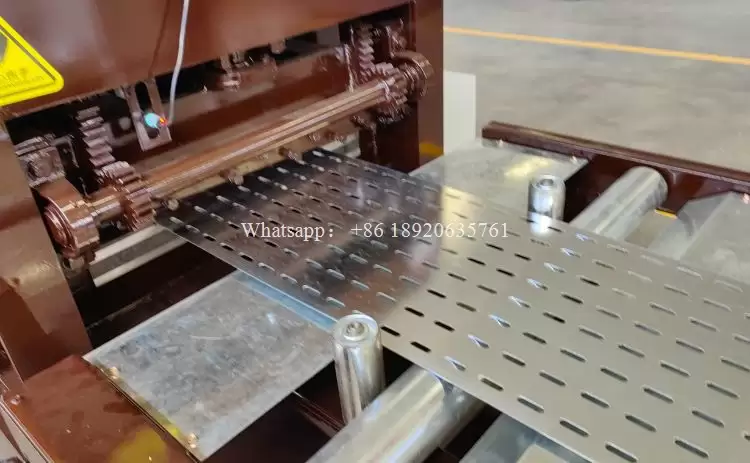

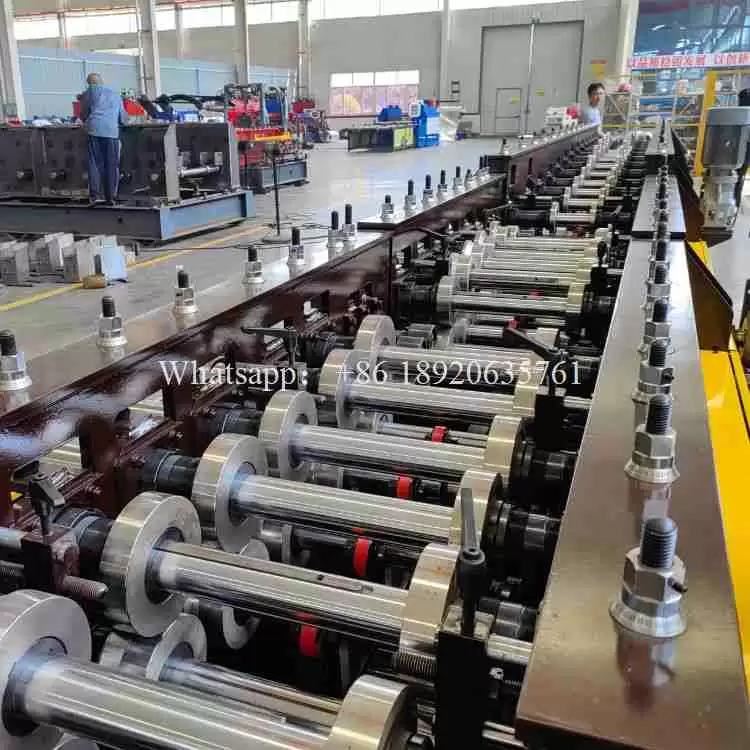

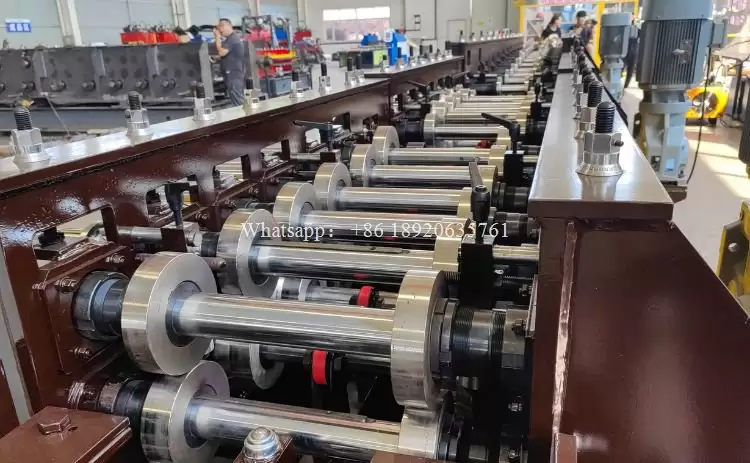

Our Cable Tray Machine performs several critical processes with remarkable precision. The production begins with automatic decoiling, where metal coils are smoothly fed into the system. The material then passes through a precision leveling unit that eliminates any imperfections and ensures perfect flatness. The leveled material undergoes hydraulic shearing for accurate length cutting and proceeds to the punching station, where custom hole patterns and shapes are created according to specific requirements. Finally, the roll forming section shapes the prepared material into perfect cable tray profiles through a series of precisely engineered forming rollers.
The versatility of our Cable Tray Machine allows for complete customization of various parameters, including profile designs, hole patterns, material widths, and thicknesses. This flexibility enables manufacturers to meet diverse project specifications and customer requirements. What sets our Cable Tray Machine apart is our commitment to customer support - we provide detailed technical drawings within three days and offer comprehensive remote services including video guidance and online technical support. Our engineers are available for remote assistance, ensuring optimal operation and maintenance of your Cable Tray Machine.
This advanced Cable Tray Machine offers numerous advantages to manufacturers, including reduced labor costs, minimized material waste, and consistent product quality. The automated nature of the Cable Tray Machine ensures high production efficiency while maintaining precise dimensional accuracy. By investing in our Cable Tray Machine, manufacturers can significantly enhance their production capabilities and meet the growing demands of the electrical infrastructure market.
Our company stands behind the quality and performance of the Cable Tray Machine with reliable after-sales support and warranty services. We understand the importance of continuous operation in manufacturing, which is why we provide prompt remote assistance and troubleshooting guidance. The Cable Tray Machine represents our dedication to innovation and customer satisfaction, offering a perfect solution for cable tray manufacturers seeking to improve their production efficiency and product quality.
Choose our Cable Tray Machine for your manufacturing needs and experience the perfect combination of advanced technology, reliable performance, and comprehensive support. Contact us today to learn how our Cable Tray Machine can transform your production process and help you achieve new levels of manufacturing excellence.
More parameters
| Product Name | Cable Tray Machine Production Line |

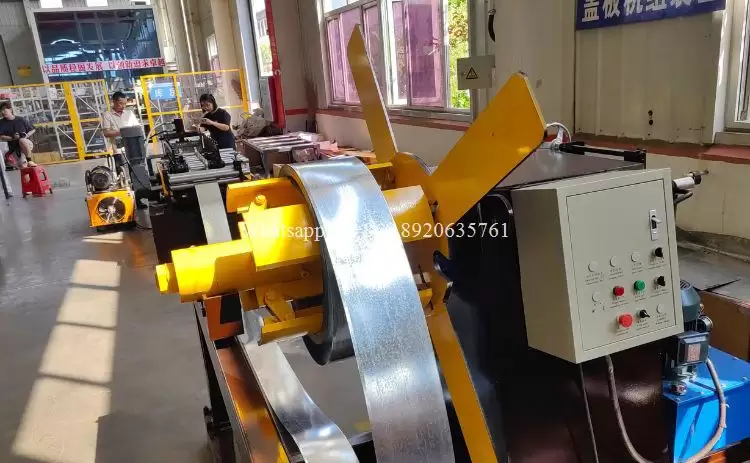

| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |
| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |

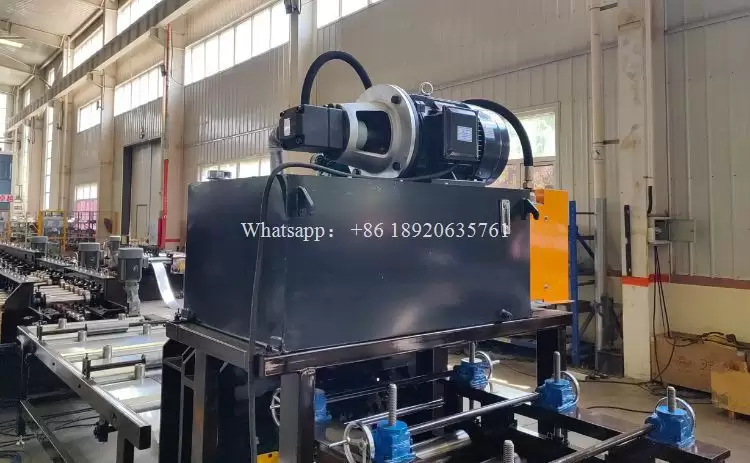

| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |

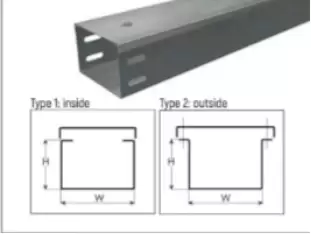

| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |

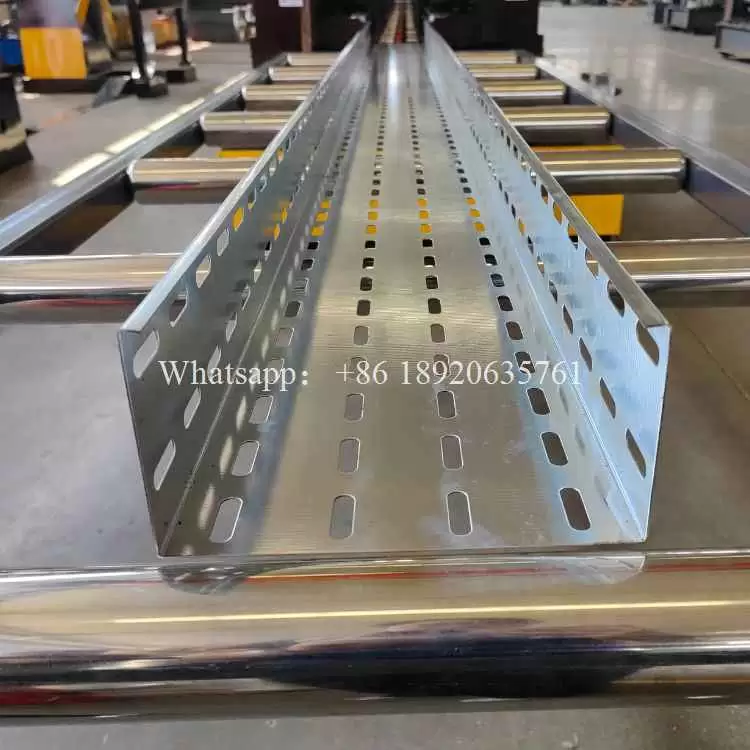

| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
We understand that every manufacturer has unique requirements, which is why our engineering team works closely with clients to develop optimal configurations. We are committed to rapid turnaround times, providing detailed production drawings within just three days of finalizing specifications.
Our support extends far beyond the initial purchase and installation. We offer comprehensive remote services, including video online guidance and real-time troubleshooting, ensuring that your team can operate the cable tray forming machine with confidence and efficiency. Our engineers are available for virtual assistance, providing expert advice on maintenance, operational best practices, and minor adjustments to keep your production line running smoothly.
In summary, our cable tray forming machine represents the perfect blend of innovation, reliability, and adaptability. It is an ideal investment for manufacturers seeking to enhance their capabilities, improve product quality, and expand their market reach. By choosing our cable tray forming machine, you are not only acquiring advanced machinery but also partnering with a team dedicated to your long-term success. Contact us today to learn more about how our cable tray forming machine can transform your production process and drive your business forward.
