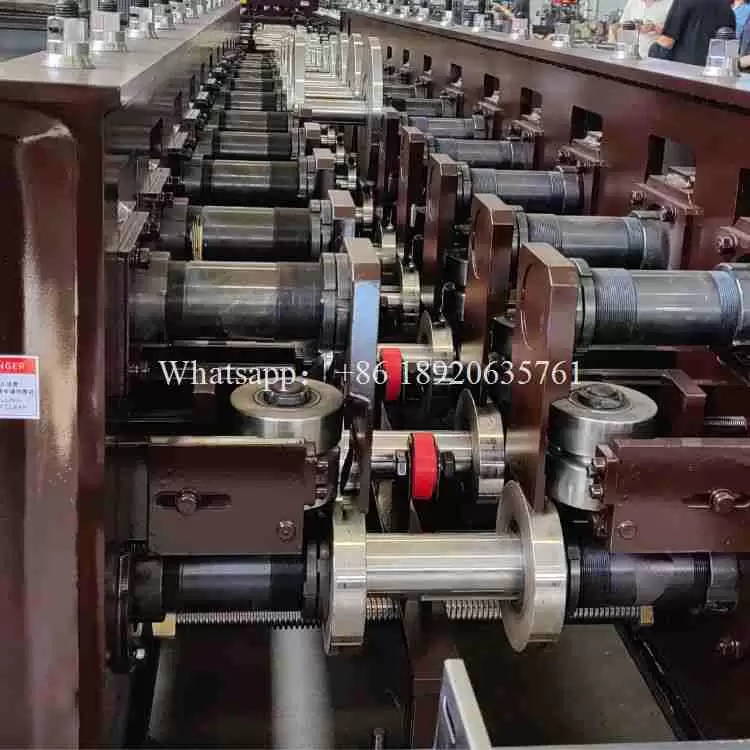

Introducing Our High-performance Cable Tray Roll Forming Machine

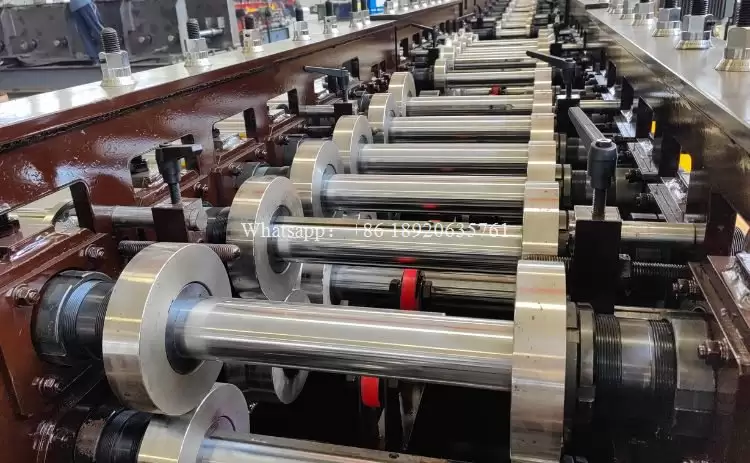

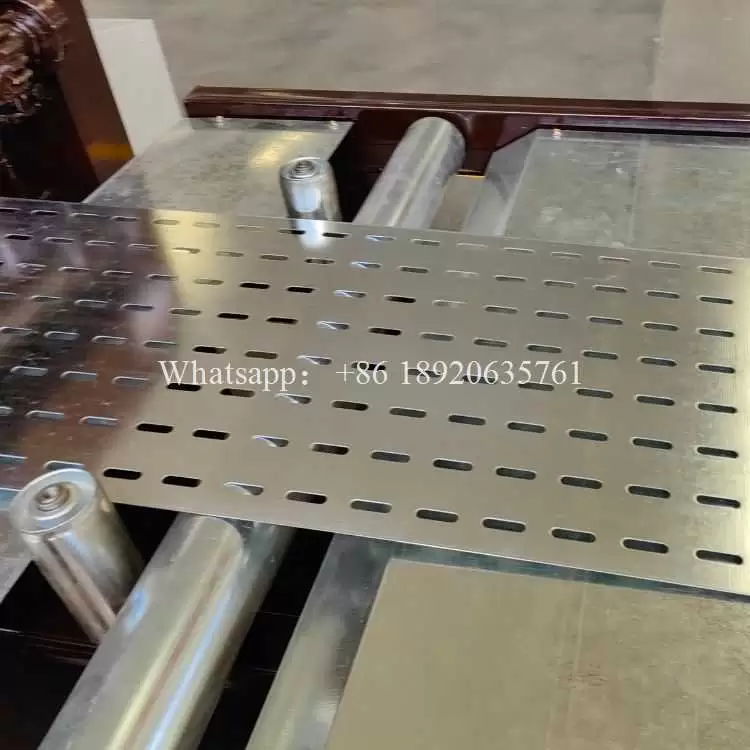

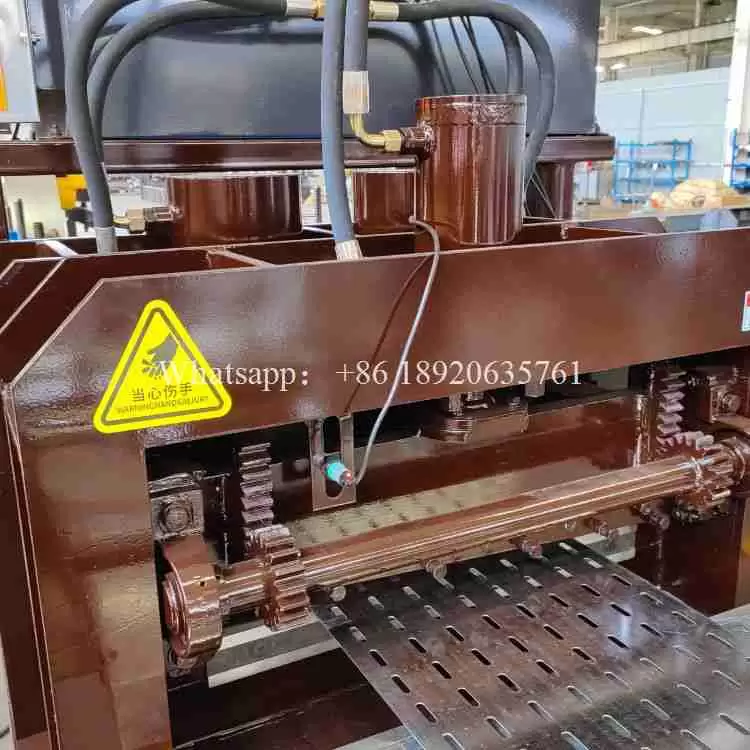

In the competitive field of cable management manufacturing, efficiency, precision, and adaptability are crucial. Our High-performance Cable Tray Roll Forming Machine is designed to deliver excellence in every aspect of production. This integrated production line seamlessly executes all key processes, including uncoiling, leveling, hydraulic shearing, punching, and precision roll forming, ensuring the consistent creation of high-quality cable trays.
Workflow Diagram
A standout feature of our High-performance Cable Tray Roll Forming Machine is its extensive customization capability. Every critical parameter—from the tray profile and the position and shape of holes to the material feed width and thickness—can be tailored to meet your specific project requirements. We value your time, which is why we commit to providing completed technical drawings within just three days after order confirmation.
To further support your operations, we offer comprehensive remote engineering support. This includes online video guidance and quality assurance services, ensuring smooth installation, rapid troubleshooting, and minimal downtime. Our High-performance Cable Tray Roll Forming Machine is more than just machinery—it's a reliable partnership aimed at boosting your productivity and maintaining superior product quality.
Ideal for both new entrants and established manufacturers, this robust system combines advanced technology with user-friendly operation. Choose our High-performance Cable Tray Roll Forming Machine to elevate your production capabilities and strengthen your market position.
More parameters
| Product Name | High-performance cable tray roll forming machine |

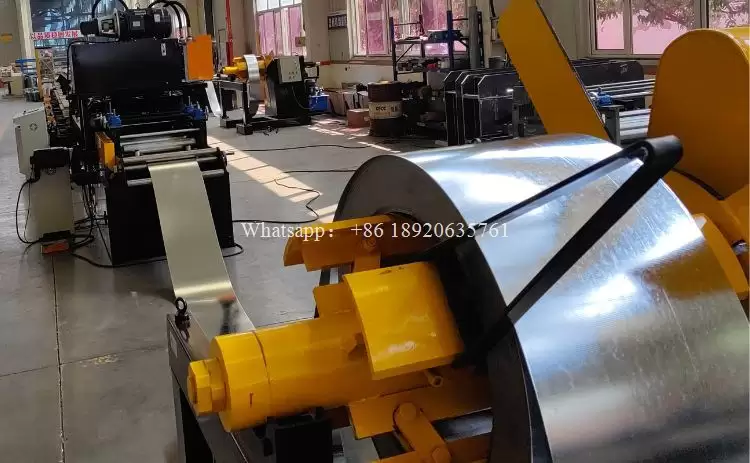

| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |
| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |
| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |
| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |
| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
Our photos with our customers
About us
HOPEX (Wuxi) Intelligent Technology Co., Ltd.: Pioneering Roll Forming Innovation Since 1996
Founded in 1996 with a dedicated R&D team for roll forming technology, HOPEX has evolved into a global force in intelligent manufacturing. Established in Wuxi in 2003, we launched our core product lines—semi-automatic purlin machines, cable tray machines, and guardrail machines—laying the foundation for our commitment to 100% customized solutions.In 2016, we doubled our team and expanded our offerings to include solar strut machines and heavy-duty leveling/slitting lines, while strengthening R&D for our flagship products. By 2022, HOPEX achieved 100% sales growth and revolutionized production through full automation, upgrading all equipment to smart manufacturing standards and growing our R&D team to 10+ experts.Today, we export cutting-edge machinery worldwide—serving Russia, Australia, India, the Middle East, Southeast Asia, and beyond—as we fully enter the global market in 2025. Our vision is clear: to be the global leader in roll forming technology, making precision engineering easier and hassle-free for industries everywhere.
