Cable Tray Machine
Unlock Efficiency with Our Advanced Cable Tray Machine

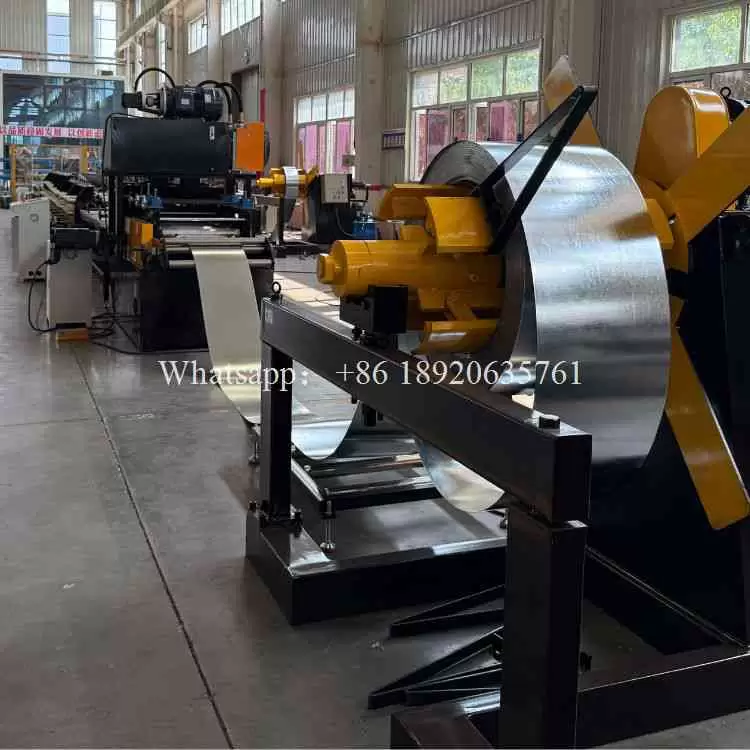

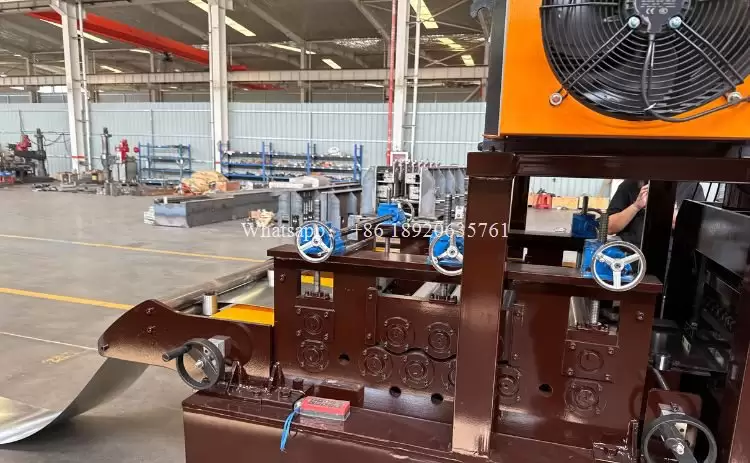

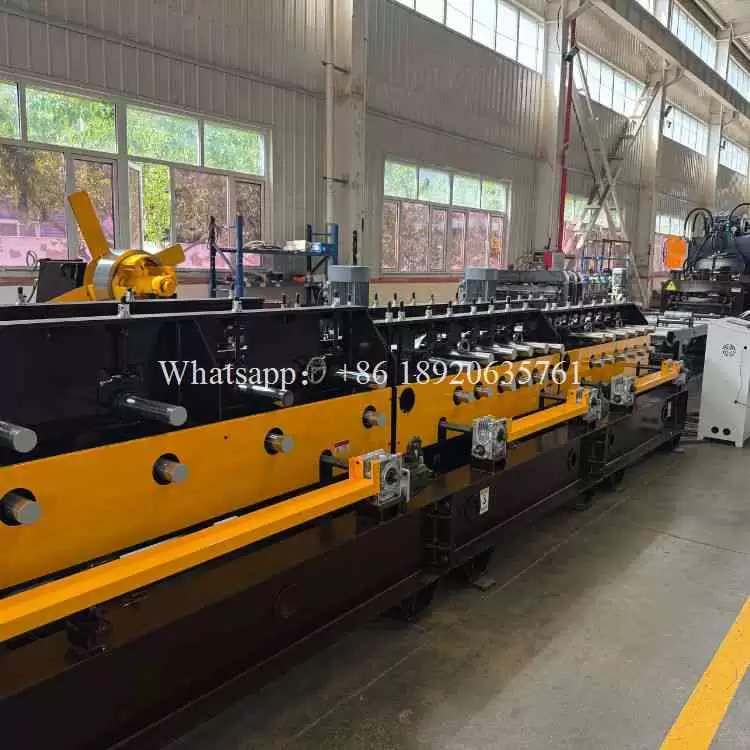

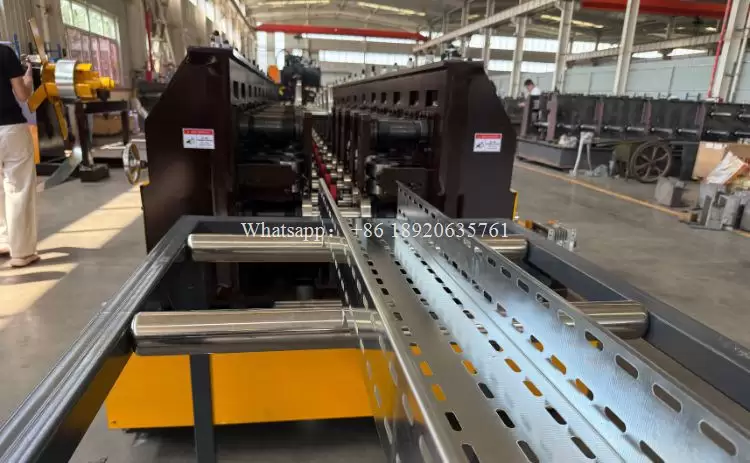

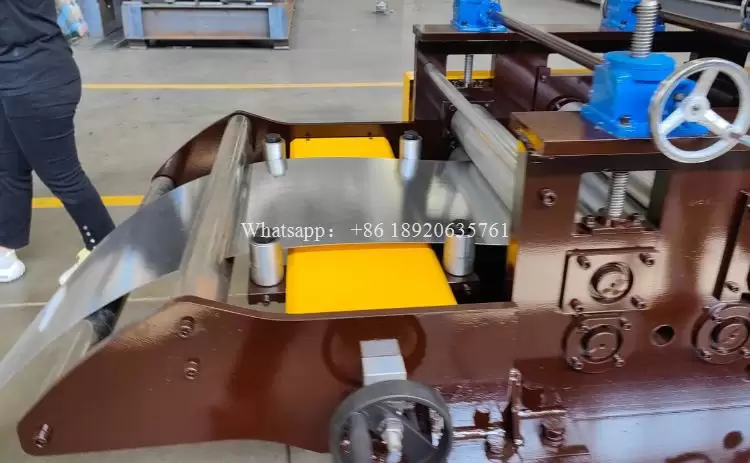

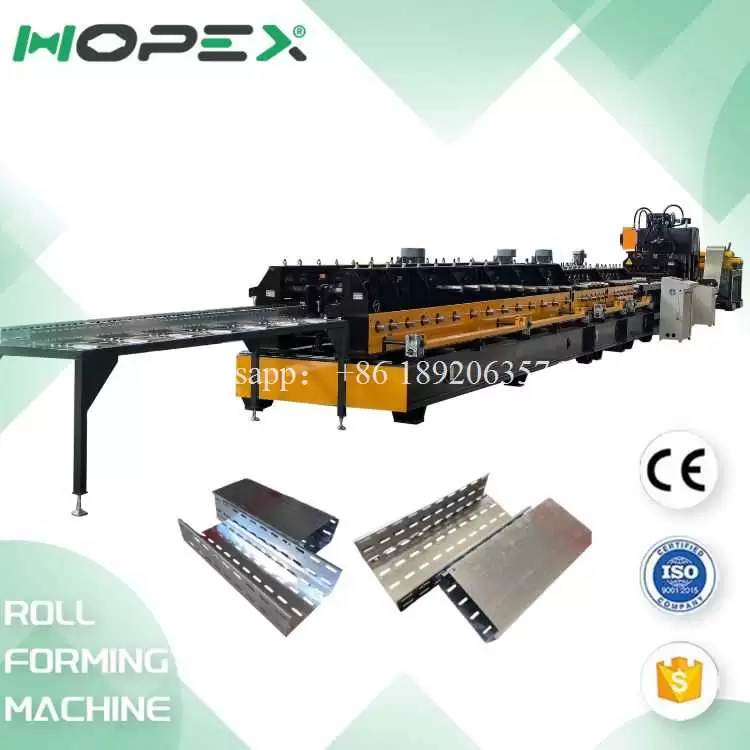

In the world of cable management systems, precision and durability are paramount. Our state-of-the-art Cable Tray Machine is engineered to meet these demands, offering a comprehensive solution for manufacturing high-quality cable trays with unmatched efficiency. This all-in-one production line integrates several critical processes, including uncoiling, leveling, hydraulic cutting, punching, and roll forming, ensuring each tray meets exact specifications.
Workflow Diagram
What sets our Cable Tray Machine apart is its exceptional customization capability. Clients can tailor everything from the profile and punching patterns to the material width and thickness, making it adaptable to diverse project requirements. We understand that time is critical in manufacturing, which is why we promise a swift 3-day drawing submission after order confirmation, accelerating your path to production.
Moreover, our commitment to support doesn’t end at delivery. With remote quality assurance and live video guidance from our experienced engineers, we provide continuous assistance to ensure smooth operation and minimal downtime. Our Cable Tray Making Machine isn’t just a piece of equipment—it’s a partnership dedicated to enhancing your productivity and product quality.
Whether you are expanding your production capacity or entering the cable tray market, our machine offers the reliability, flexibility, and technical support needed to succeed. Choose our Cable Tray Machine for a seamless blend of innovation and practicality.
More parameters
| Product Name | cable tray machine |
| Material rack | Hydraulic core expansion Electric unwinding function Inner diameter expansion and contraction range: φ460-520 mm Maximum coil outer diameter: φ1500 mm Load capacity: 6 tons |

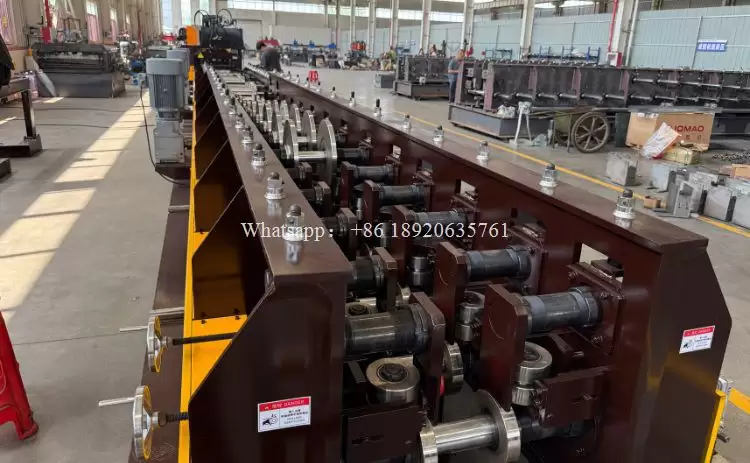

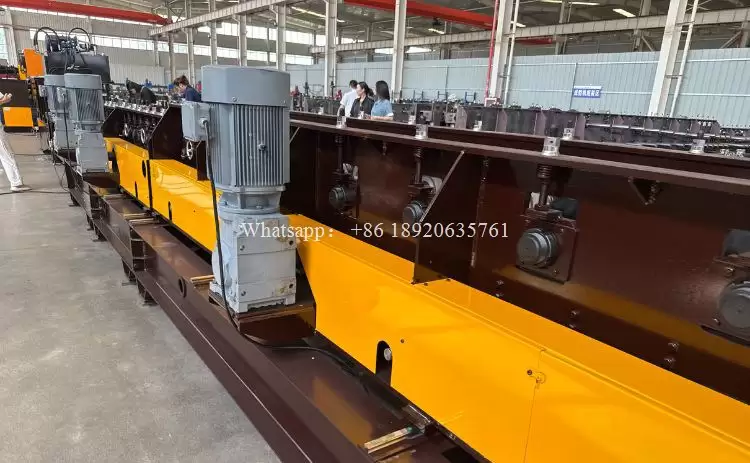

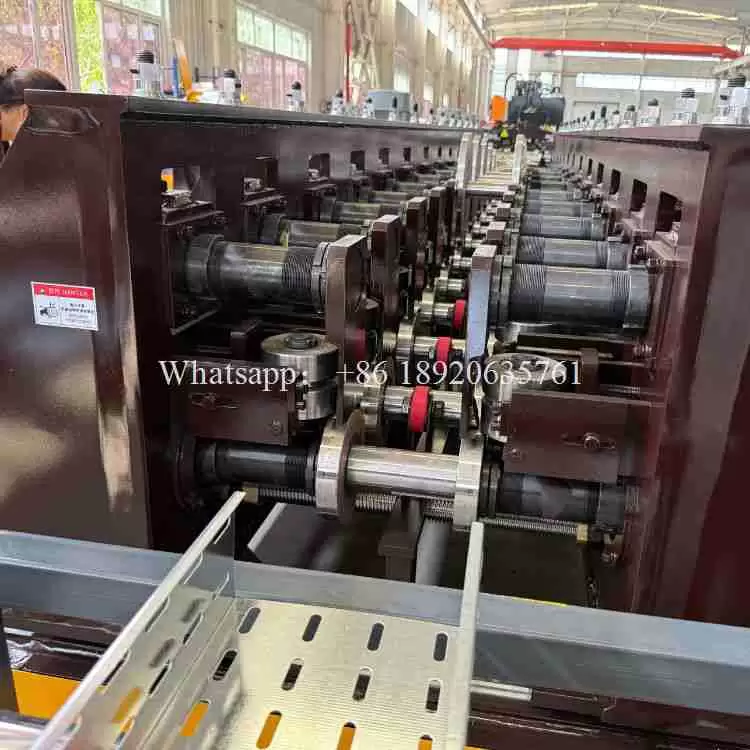

| Roll forming the second half | Opposing Roll Forming Main Motor Power (5.5 kW) Opening and Closing Motor Power (1.5 kW) |
| Main motor power | 7.5 kw |

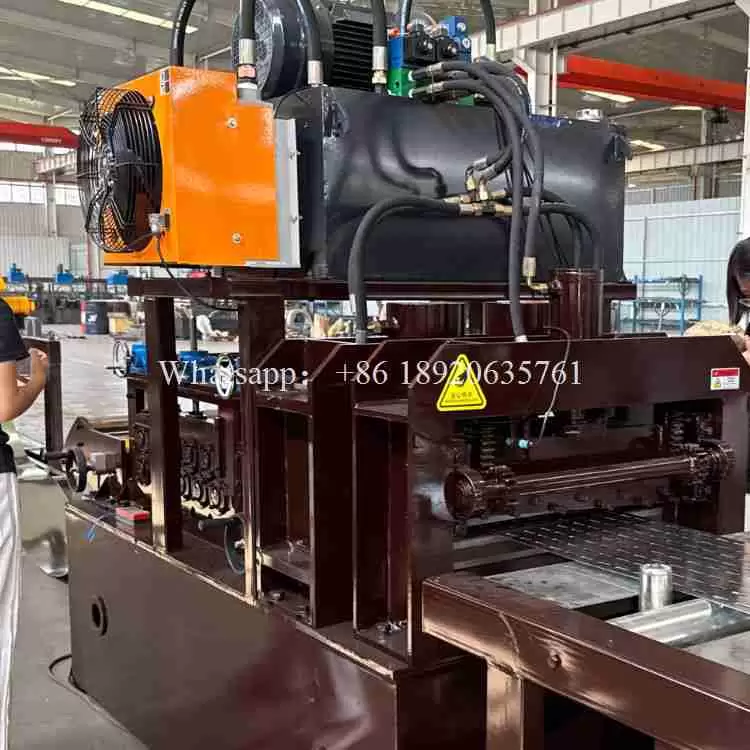

| Hydraulic components | 11 KW |
| Cutting type | Hydraulic shear |
| Produce speed | 8-16m/min |
| Small edge roll forming part | Inward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) Outward-turning small edge: 6-row roll forming Small edge leveling Main motor power (5.5 kW) Opening and closing servo motor power (1.5 kW) |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| High-speed platform | 3m roller feed table (1 unit) Main motor power (1.5kW) Electric opening and closing |

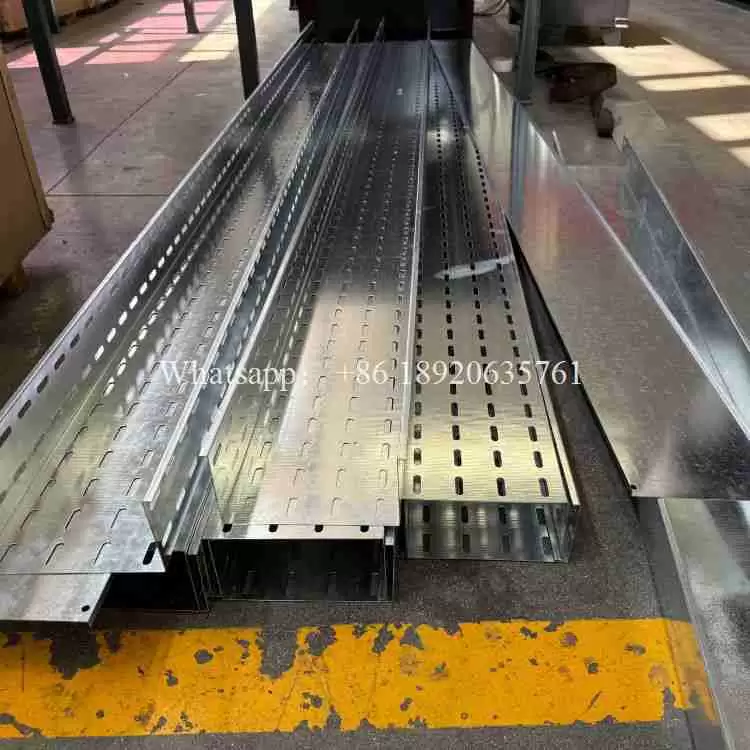

| Forming size | 400/100, 400/50, 300/100, 300/50, 200/100, 200/50, 100/100, 100/50, 50/50 |
| Rolled strip thickness | 0.8(±0.03)-1.5 (±0.03) mm |
| Voltage | 400V±5％，60Hz，3p, be customized |
| Feeding thickness | 0.8-1.5 mm |
| Rows | 26 |
| Equipment footprint | 30×2.5×2.2 m |
| Feeding width | 200-650mm（200-800） |
