Automatic Storage Rack Beam Roll Forming Machine Line
The Load-Bearing Horizon: Precision-Formed Warehouse Beams from Our Advanced Storage Rack Beam Roll Forming Machine
For several years, we’ve engineered the machines that build the world’s warehouses. While uprights provide structure and braces deliver stability, it’s the beams that shoulder the load. Introducing our flagship solution for horizontal strength: the Storage Rack Beam Roll Forming Machine. This highly specialized production line is engineered for the efficient, high-precision manufacturing of closed-tube galvanized rack beams – the critical load-bearing horizontals in pallet racking and shelving systems.

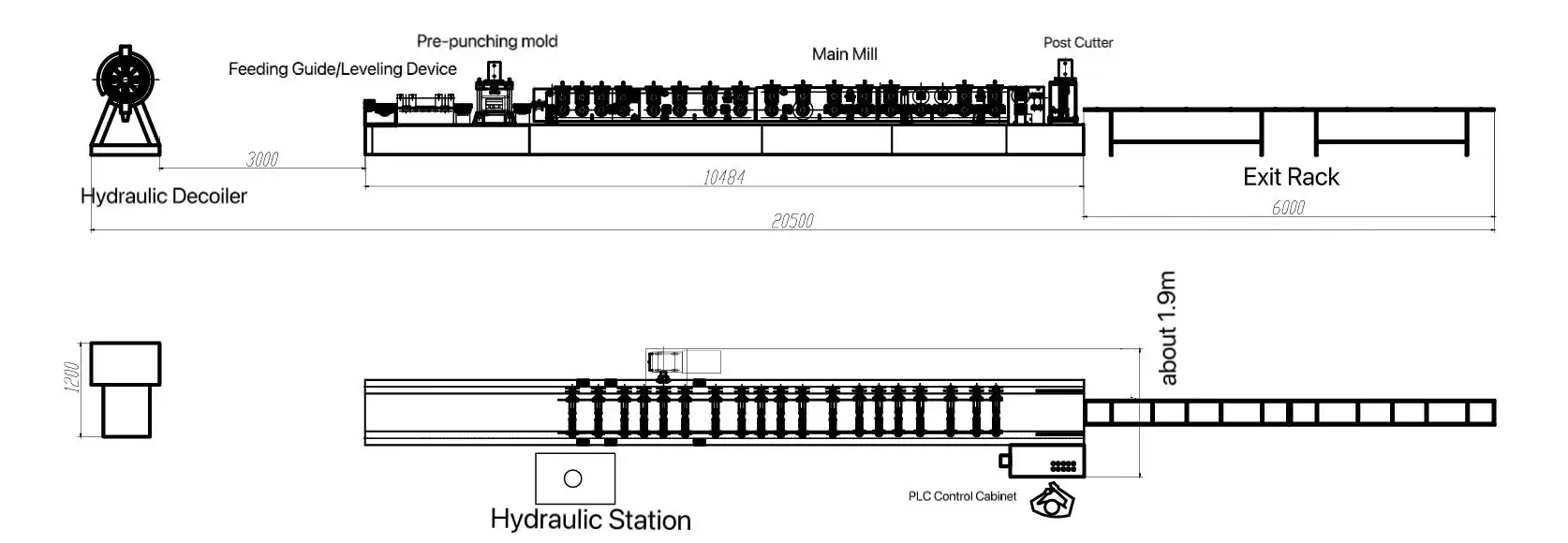

Workflow Diagram
More parameters
| Product Name | Automatic Storage Rack Beam Roll Forming Machine Line |
| Main motor power | 15 kw（Siemens） |
| Hydraulic station | Vane pump, 7.5 kw |
| Produce speed | 20 m/min |
| Shaft material | 45# Steel |
| Brand of electrical control cabinet |
Phase sequence protector Independent cabinet |

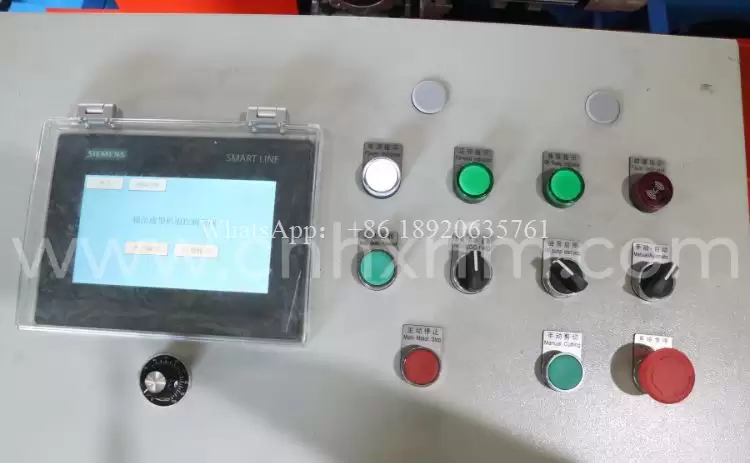

| Touch screen | Siemens or customized according to customer requirements |
| Rolling materials | Cr12, heat treatment HRC58-62℃ |
| Cutting blade material | Hydraulic back shear (three blades) cutter material Cr12MoV |
| Roller diameter | Φ75 mm |
| Voltage | 380v 60hz 3p be customized |
| Feeding thickness | 1.5-2.0 mm |
| Rows | 14 |
| Board height | 600-900 mm |
Precise process: from coil to closed beam
Witness the exquisite craftsmanship of our roll-forming machine for storage rack beams:

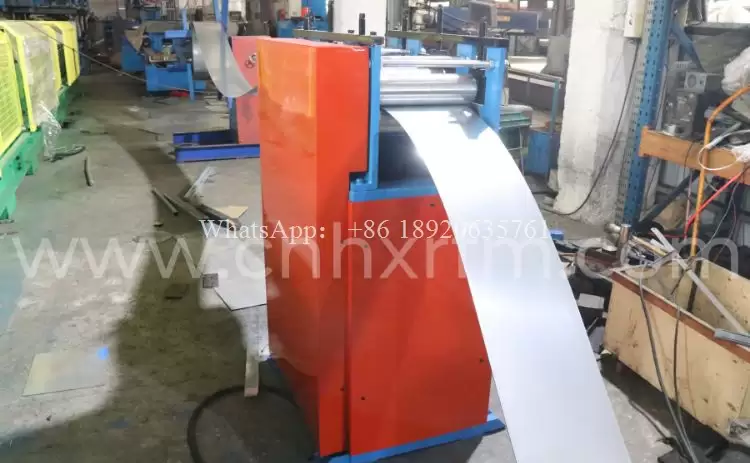

Loading and feeding: Large galvanized steel strip coils are mounted on hydraulic unwinders. The front end is fed in through an inlet device.

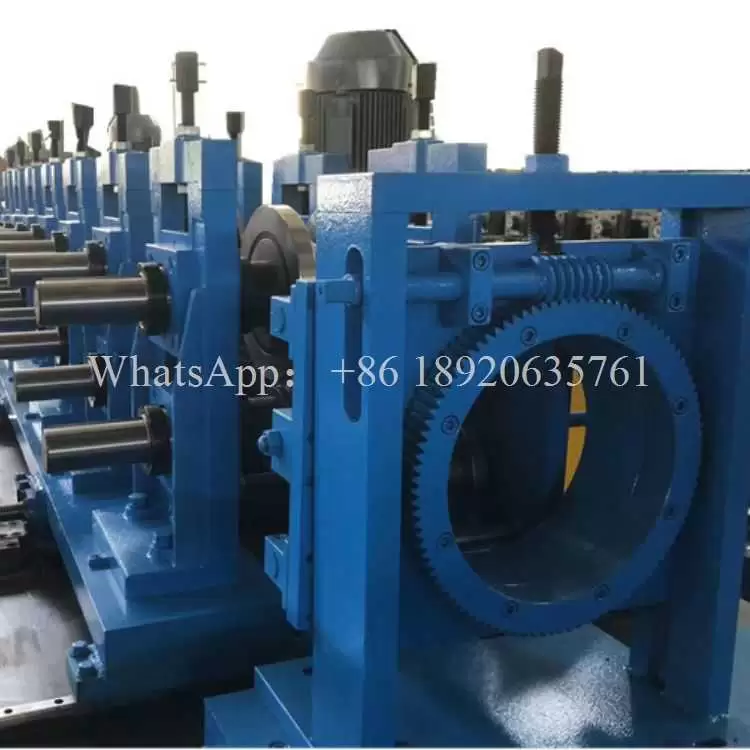

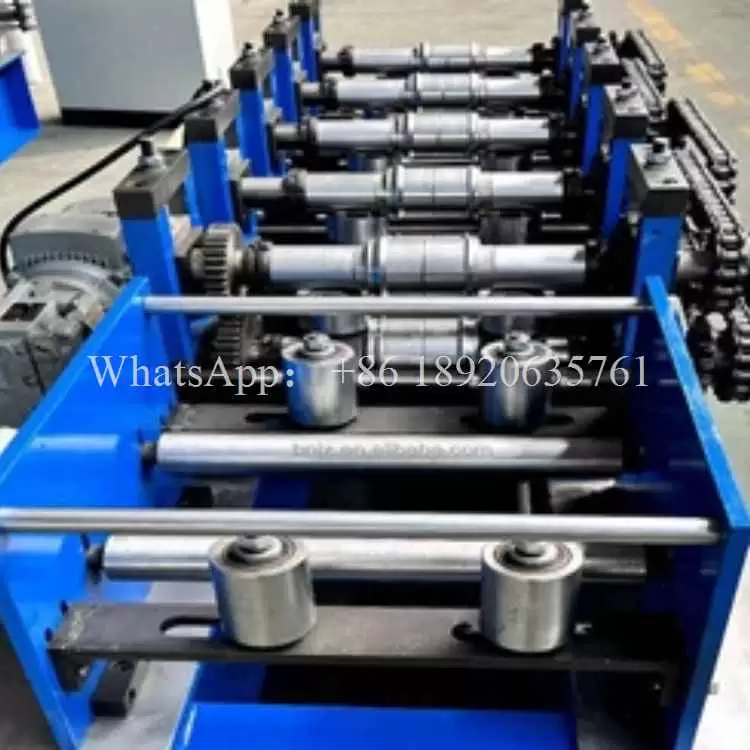

Double C-shaped steel forming: The steel strip enters the roll-forming machine. Through a set of precisely sequenced forming stations, the steel strip is gradually formed to form parallel mirrored C-shaped grooves.
High-speed precision cutting: The continuous closed beam enters the universal flying shear. The flying shear is perfectly synchronized with the line speed and cuts the beam to the exact preset length without interrupting production.

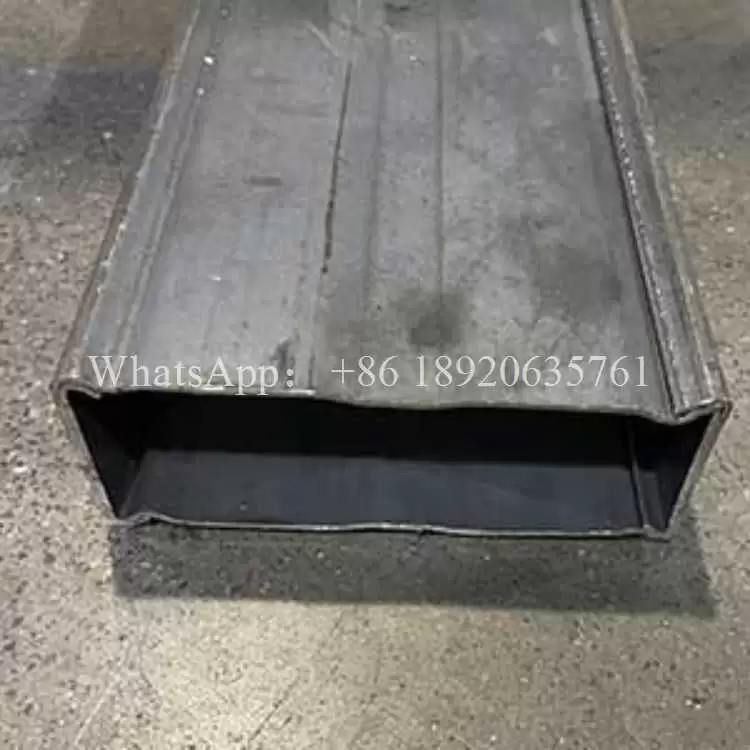

The two C-shaped semi-finished products produced by the roll-forming machine are connected to a tube by a bite machine to become the final product

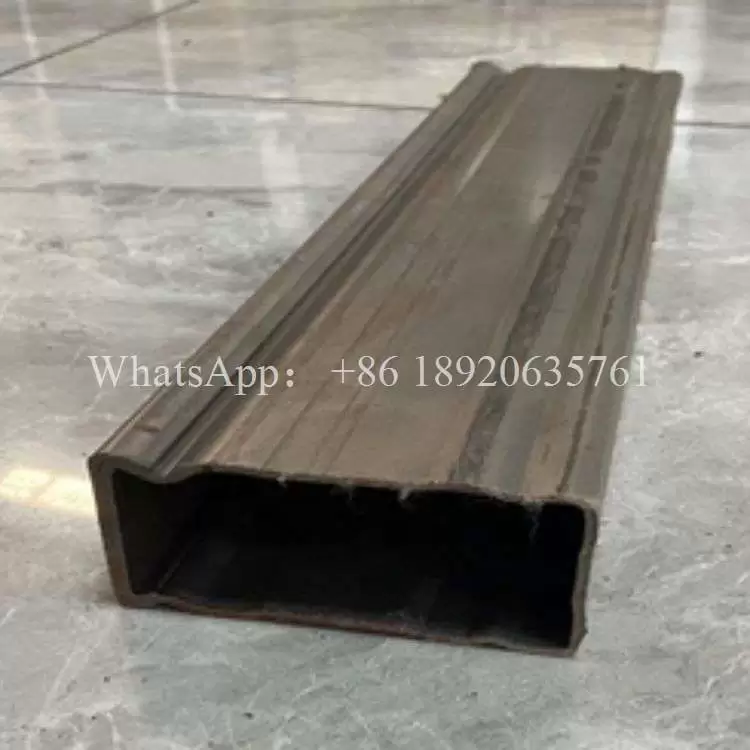

Finished beam processing: The finished galvanized rack beam is smoothly conveyed from the rack beam roll-forming machine, ready for packaging or direct integration into the racking system.
Application Scenario
Our photos with our customers
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a storage rack beam roll forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the storage rack beam roll forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
