Rack System Beam Roll Forming Machine
Unlock Efficiency with the Advanced Rack System Beam Roll Forming Machine
In the competitive world of storage solutions and industrial racking, precision, strength, and production efficiency are paramount. For manufacturers seeking a significant edge, the Rack System Beam Roll Forming Machine stands as the definitive solution. This integrated production line is engineered specifically for the high-volume manufacturing of high-quality rack system beams, transforming raw coil steel into finished, ready-to-use components with remarkable speed and accuracy.
Workflow Diagram
The versatility of this Rack System Beam Roll Forming Machine line is one of its greatest strengths. We understand that every client's needs are unique. Therefore, critical parameters such as the beam's roll forming thickness, as well as the precise size and location of connection holes, are fully customizable. This ensures the final product perfectly matches your specific design and load-bearing requirements. To facilitate this, our engineering team commits to a rapid 3-day drawing delivery, getting your project from concept to production with minimal delay.

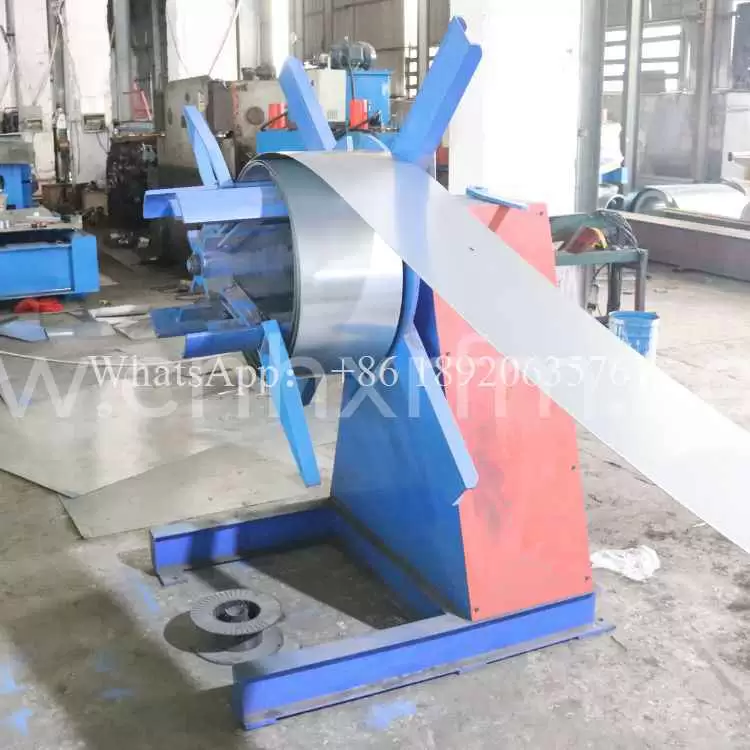

The production process is a seamless, automated sequence. It begins with an uncoiler that feeds material into the system. Next, a precision punching station pierces holes with absolute accuracy, followed by a flying shear that cuts the continuous profile to the exact required length. The heart of the line is the robust roll forming station, where the flat strip is progressively shaped into a perfect, consistent beam profile through a series of precision-engineered rolls. The process concludes with an automatic stacking unit, which neatly piles the finished beams, ready for packaging or further assembly.
Our commitment to your success extends far beyond the sale. We provide comprehensive remote engineer warranty support, including live video guidance for operational setup, routine maintenance, and troubleshooting. This ensures your Rack System Beam Roll Forming Machine operates at peak performance, minimizing downtime and maximizing your return on investment.
By integrating cutting, punching, and forming into one coherent unit, this Rack System Beam Roll Forming Machine drastically reduces labor costs, minimizes material waste, and ensures unparalleled product consistency. It is more than just a machine; it is a partnership for growth, designed to elevate your production capabilities and solidify your position in the market. Invest in the reliability and customizability of our advanced Rack System Beam Roll Forming Machine today.
More parameters
| Product Name | Rack System Beam Roll Forming Machine |
| Main motor power | 15 kw（Siemens） |
| Hydraulic station | Vane pump, 7.5 kw |
| Produce speed | 20 m/min |
| Shaft material | 45# Steel |

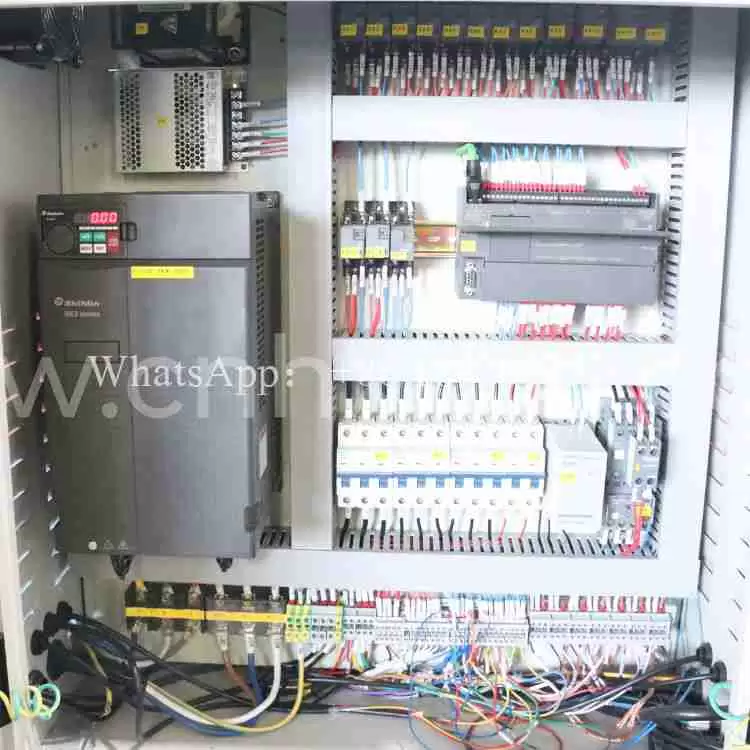

| Brand of electrical control cabinet |
Phase sequence protector Independent cabinet |

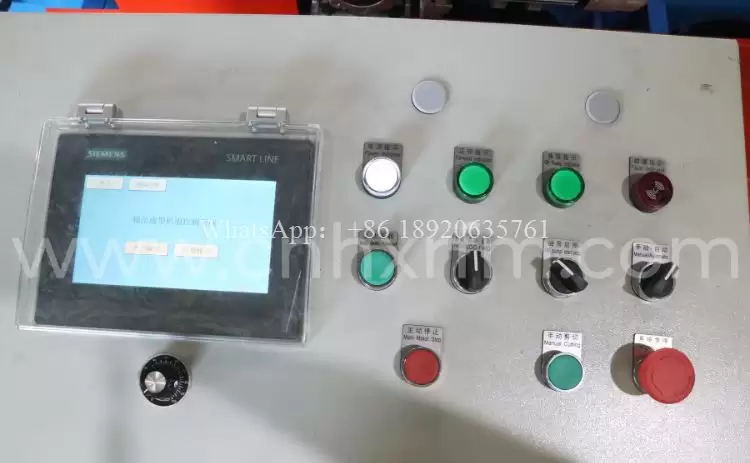

| Touch screen | Siemens or customized according to customer requirements |
| Rolling materials | Cr12, heat treatment HRC58-62℃ |
| Cutting blade material | Hydraulic back shear (three blades) cutter material Cr12MoV |
| Roller diameter | Φ75 mm |
| Voltage | 380v 60hz 3p be customized |
| Feeding thickness | 1.5-2.0 mm |
| Rows | 18-24（be customized） |
| Board height | 600-900 mm |
Application Scenario
Our photos with our customers
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Rack System Beam Roll Forming Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Rack System Beam Roll Forming Machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
