Storage Rack shelf beam roll forming machine
Enhancing Storage System Manufacturing with Our Advanced Shelf Beam Roll Forming Machine
In the dynamic world of industrial storage solutions, the demand for robust, reliable, and customizable shelving systems continues to grow. The quality of the components, particularly the shelf beams that form the backbone of these structures, is paramount. As a specialized manufacturer of cold roll forming machinery, we are proud to introduce our high-precision shelf beam roll forming machine. This automated production line is engineered to manufacture superior-quality shelf beams with exceptional efficiency, consistency, and flexibility, empowering manufacturers to meet diverse market demands.
Workflow Diagram

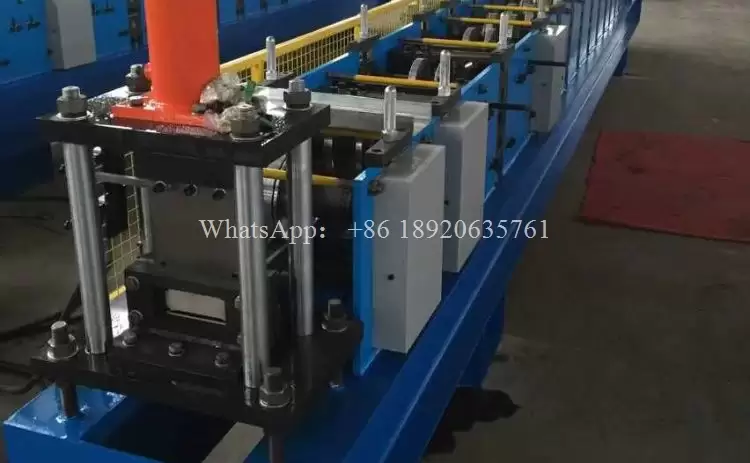

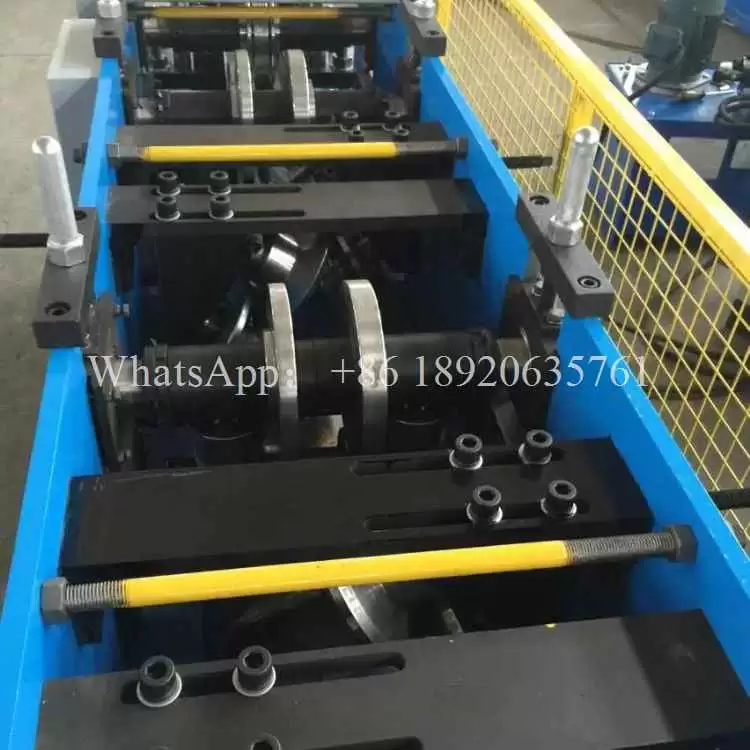

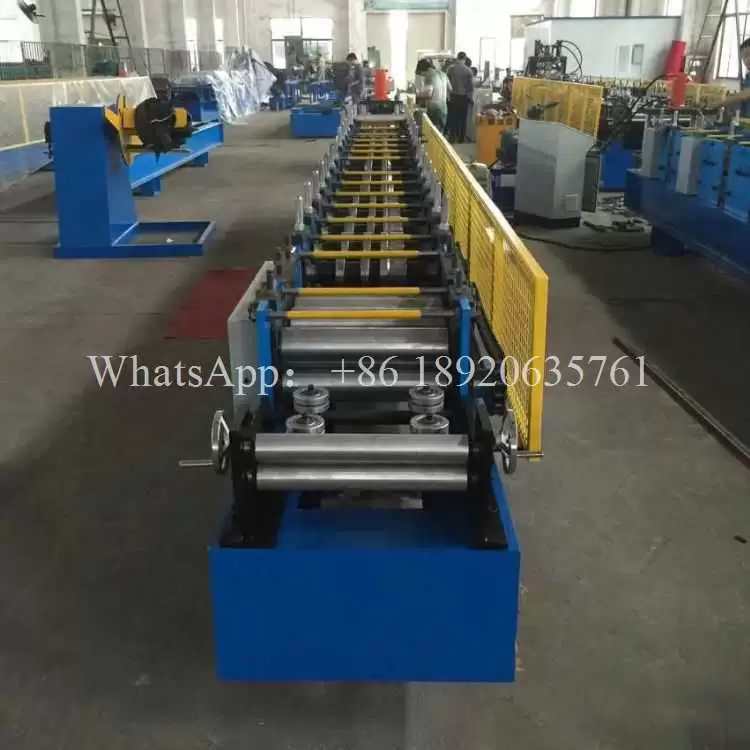

Our shelf beam roll forming machine integrates a seamless and efficient production process designed for maximum productivity. The operation begins with an automatic decoiler that feeds steel coil into the system smoothly and consistently. The material is then precisely cut to the required length by a flying shear. The heart of the system is the precision roll forming station, where the flat steel strip is gradually shaped through a series of engineered rollers into the desired strong and rigid shelf beam profile. The process concludes with an automatic stacking device that neatly collects the finished beams, ensuring they are ready for packaging or further assembly without damage. This integrated approach minimizes manual handling and optimizes output.
A key advantage of our shelf beam roll forming machine is its high degree of customization. We understand that storage solutions vary greatly. Therefore, critical parameters such as the beam profile design, material thickness, and length can be tailored to your exact specifications. This ensures that the beams produced are perfectly suited for the intended application, whether for light-duty retail shelving or heavy-duty industrial racking.
To facilitate a quick project initiation, we guarantee a 3-day drawing approval process. Our engineering team provides detailed technical drawings for your review, ensuring the machine configuration meets all your requirements before production commences. Furthermore, we are committed to your long-term success through comprehensive remote support. Our engineers offer remote warranty services and real-time video guidance for machine installation, operator training, and troubleshooting. This ensures your shelf beam roll forming machine operates at peak performance with minimal downtime, regardless of your geographical location.
Investing in our shelf beam roll forming machine translates to investing in enhanced production capacity, consistent product quality, and a stronger competitive edge. It is the ideal solution for manufacturers aiming to excel in the storage equipment industry.
More parameters
| Product Name | shelf beam roll forming machine |
| Main motor power | 15 kw（Siemens） |
| Hydraulic station | Vane pump, 7.5 kw |
| Produce speed | 20 m/min |
| Shaft material | 45# Steel |
| Brand of electrical control cabinet |
Phase sequence protector Independent cabinet |
| Touch screen | Siemens or customized according to customer requirements |
| Rolling materials | Cr12, heat treatment HRC58-62℃ |
| Cutting blade material | Hydraulic back shear (three blades) cutter material Cr12MoV |
| Roller diameter | Φ75 mm |
| Voltage | 380v 60hz 3p be customized |
| Feeding thickness | 1.5-2.0 mm |
| Rows | 18-24（be customized） |
| Board height | 600-900 mm |
Application Scenario
Our photos with our customers
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a shelf beam roll forming machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the shelf beam roll forming machine be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
