Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production
Building the Backbone of Storage: The Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production
In the world of industrial storage and logistics, the strength of the entire system rests upon its horizontal beams. These critical components bear the direct weight of stored goods, demanding exceptional load-bearing capacity, dimensional precision, and structural integrity. Manufacturing such high-performance beams requires specialized, robust technology. Our Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production is engineered precisely for this purpose. This complete, automated production line is designed to fabricate the industry's strongest shelf beams through a unique, two-stage forming process. It provides manufacturers with a turnkey solution that seamlessly transforms raw steel coil into finished, interlocked beams, delivering unparalleled efficiency and product consistency. Choosing our Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production is an investment in producing the definitive backbone of heavy-duty storage systems.
The superior capability of our Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production is demonstrated through its advanced, five-stage workflow.

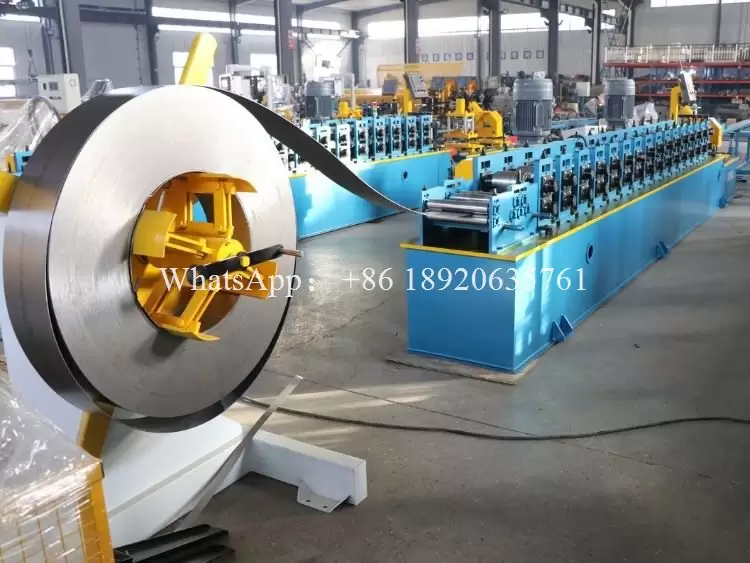

Uncoiling (Decoiler):
The process begins with a heavy-duty decoiler, feeding high-strength steel coil into the system.
Roll Forming:

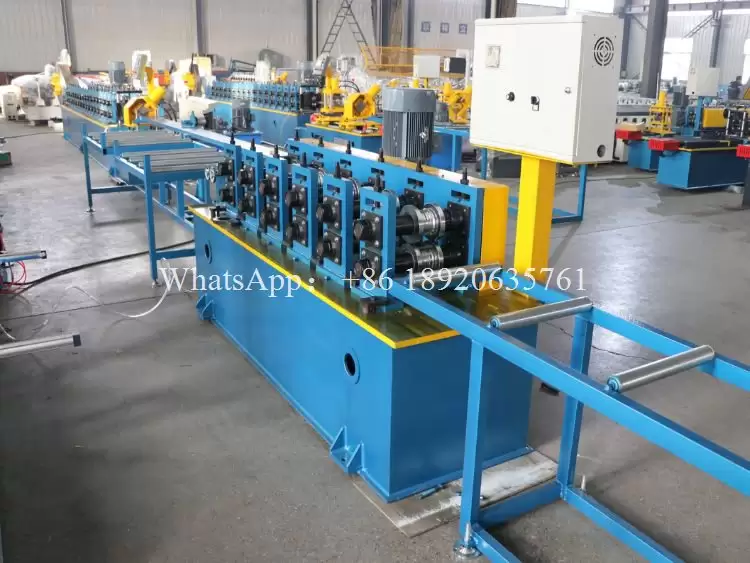

The material then moves into the primary precision roll forming station, where a series of engineered roller dies gradually shape the metal into a specific, robust beam profile.

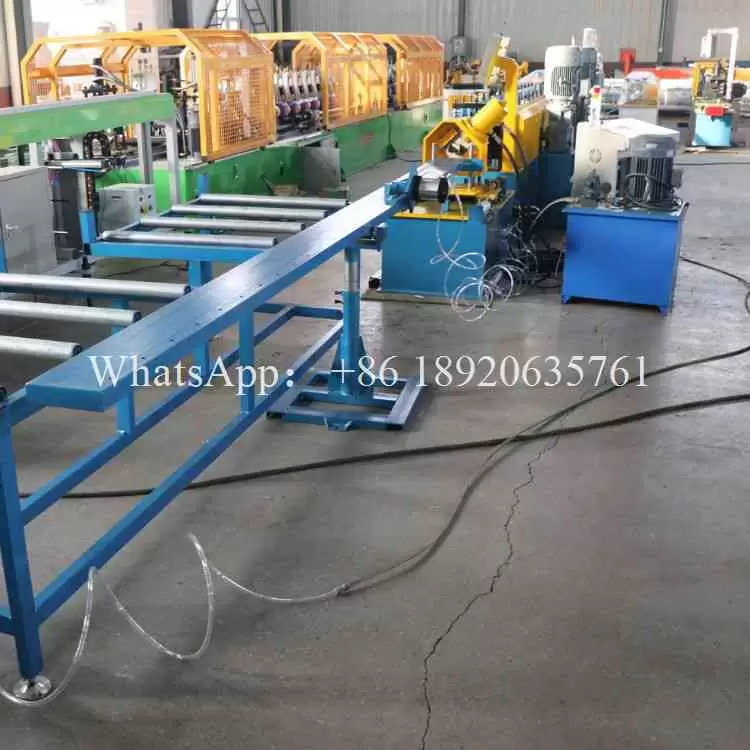

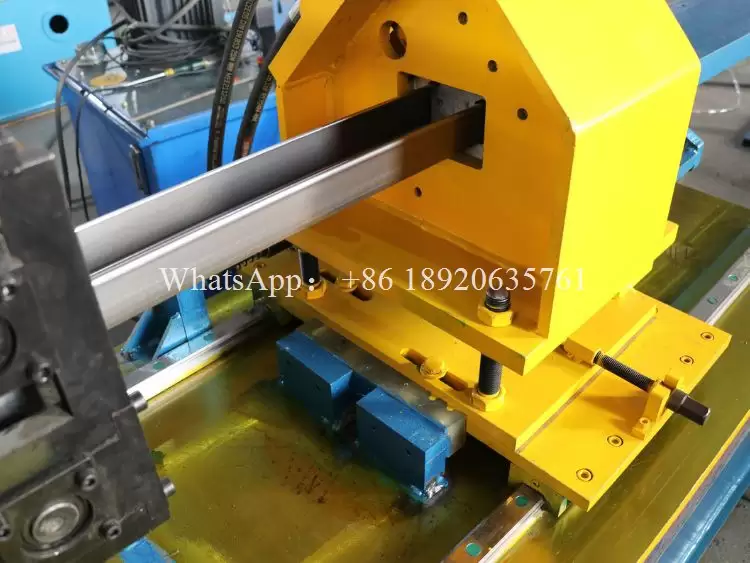

Hydraulic Cutting:
A high-tonnage hydraulic shear then cuts the continuously formed beam to precise, pre-set lengths.
Snap-lock connection roll forming machine

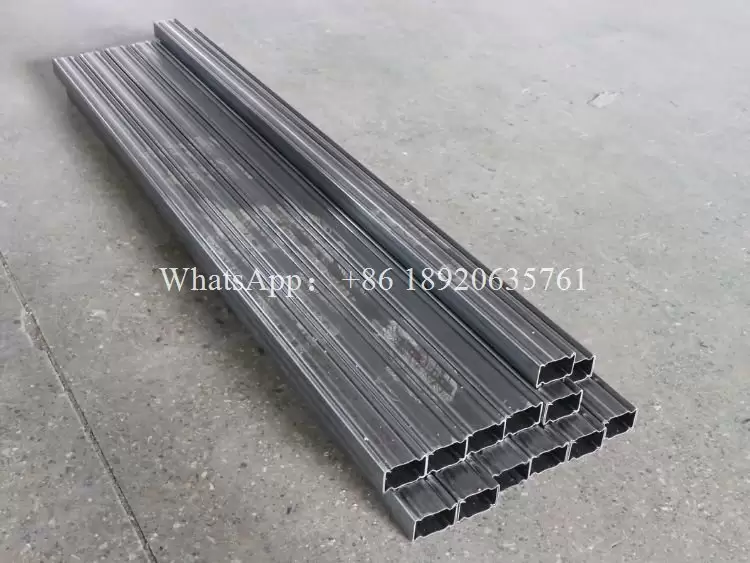

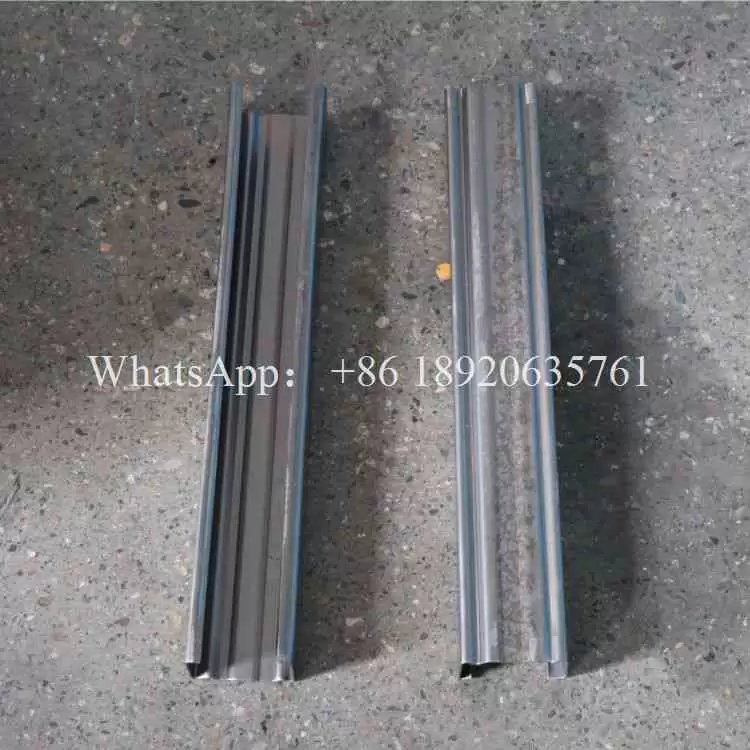

This is where our innovative technology shines: the cut semi-finished beams are automatically transferred to a secondary, specialized interlocking roll forming unit. This crucial stage precisely crimps and locks two formed sections together, creating a single, incredibly strong final beam with superior torsional rigidity.

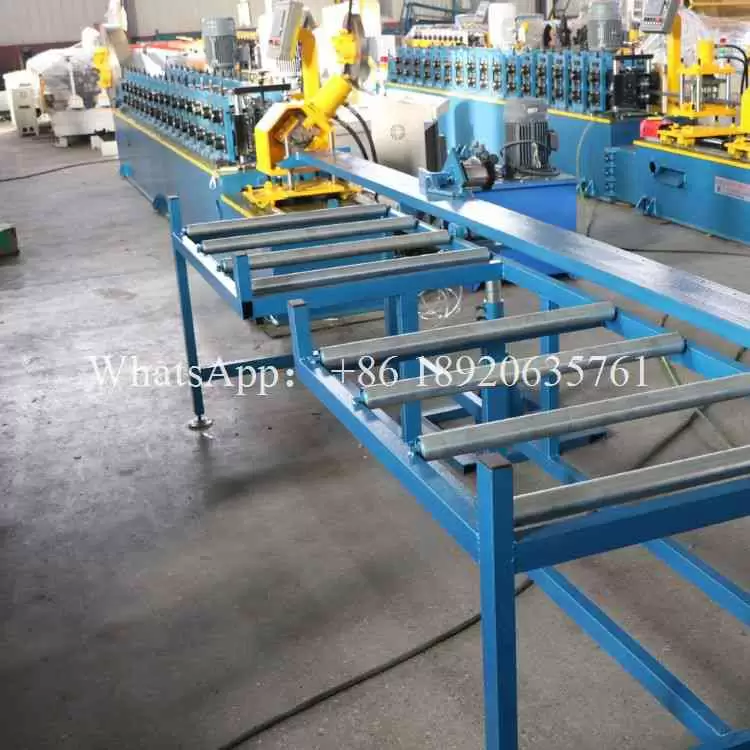

Finished Product Receiving Rack:
The completed beams are then orderly stacked by an automated receiving rack, ensuring a smooth, hands-free production cycle from start to finish within the integrated Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production.
More parameters
| Product Name | Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production |
| Main motor power | 15 kw（Siemens） |
| Hydraulic station | Vane pump, 7.5 kw |
| Produce speed | 20 m/min |
| Shaft material | 45# Steel |
| Brand of electrical control cabinet |
Phase sequence protector Independent cabinet |
| Touch screen | Siemens or customized according to customer requirements |
| Rolling materials | CCr12, hardness 55-60 (HRC), chrome plating thickness 0.01-0.015 (mm) |
| Roller diameter | 60 mm |
| Cutting blade material | Cr12MoV, hardness 58 - 62 (HRC) |
| Roller diameter | Φ75 mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 1.5 mm |
| Rows | 18-24（be customized） |
| Feeding width |
192±2 mm
|
| Product tolerance |
Length: +2 mm / all processed dimensions
Width, Height: ± 0.5 mm Other aspects: Tolerances for other dimensions (length, angles, etc.) shall conform to EN10162 cold-rolled steel profiles standard. |
| Dimensions (length × width × height) |
21 x 2 x 1.8 (meters)
|
| Weight | About 9 tons |
| Control system | PLC |
| Total power | 42 kw |
| Output material handling rack-Table length | 3m ×2 |
We understand that industrial applications vary greatly. Therefore, our Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production is built with a high degree of customization. Key machine parameters, including material entry width, roll forming thickness, and operating voltage, can be tailored to your specific beam design and factory infrastructure. This flexibility ensures optimal performance for your unique product requirements. Furthermore, to guarantee maximum uptime and operational confidence, we provide comprehensive lifetime support. Our team of expert engineers is available for remote, real-time video guidance, offering instant troubleshooting, maintenance advice, and operational optimization directly to your production floor. This commitment ensures your Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production operates at peak efficiency, safeguarding your productivity and return on investment.
Application Scenario
Our photos with our customers
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Heavy Rack Roll Forming Machine For Making Industrial Shelf Beam Production be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
