CE Certified Shelf Beam Roll Forming Machine with Remote Warranty Support
CE Certified Shelf Beam Roll Forming Machine with Remote Warranty Support: Efficient and Reliable Solution for Metal Shelf Beams
The CE Certified Shelf Beam Roll Forming Machine with Remote Warranty Support is a state-of-the-art production line designed for the efficient manufacturing of metal shelf beams used in storage and shelving systems. This machine is equipped with advanced features that ensure high-quality, precise, and durable beams that provide optimal support in various industrial, commercial, and retail storage applications. The Shelf Beam Roll Forming Machine offers a fully automated, reliable solution that allows manufacturers to streamline their production processes, reduce labor costs, and increase overall production efficiency.
The CE Certified Shelf Beam Roll Forming Machine follows a highly efficient and fully automated process, ensuring that the final product meets the highest standards of quality and precision. The production line is composed of several stages, each essential for the flawless manufacture of metal shelf beams.

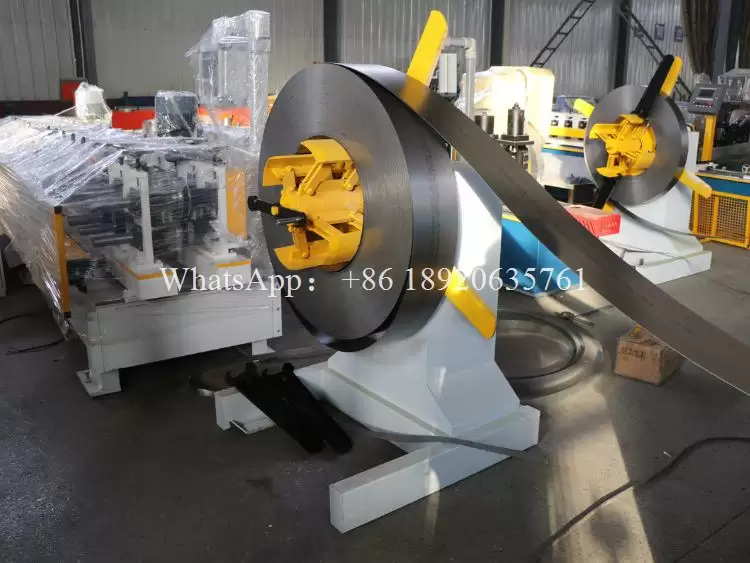

Uncoiling (Decoiler):
The production process begins with the decoiler, which is responsible for unrolling the metal coil to feed it into the machine. The decoiler ensures that the steel sheet is properly aligned and ready for the next stages of processing, minimizing the risk of material damage.

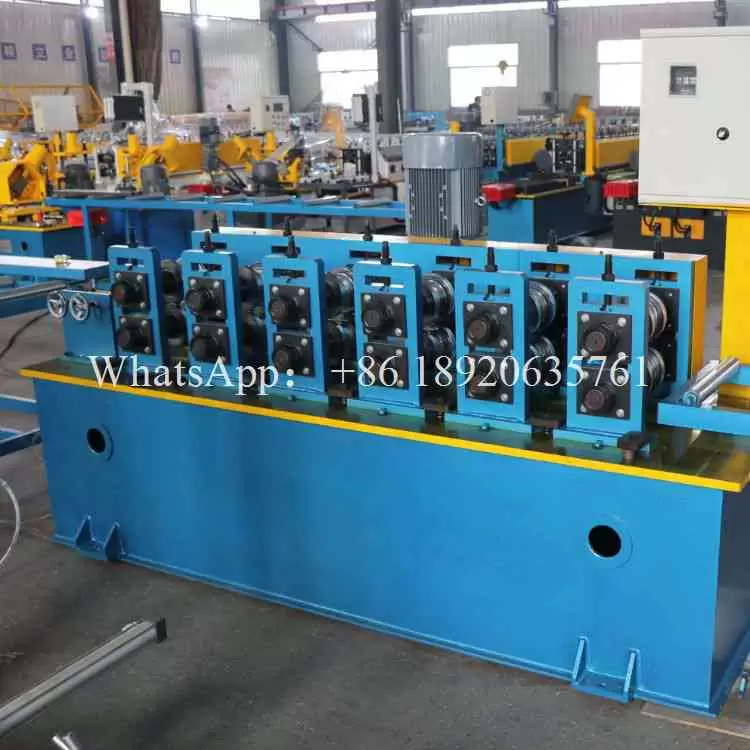

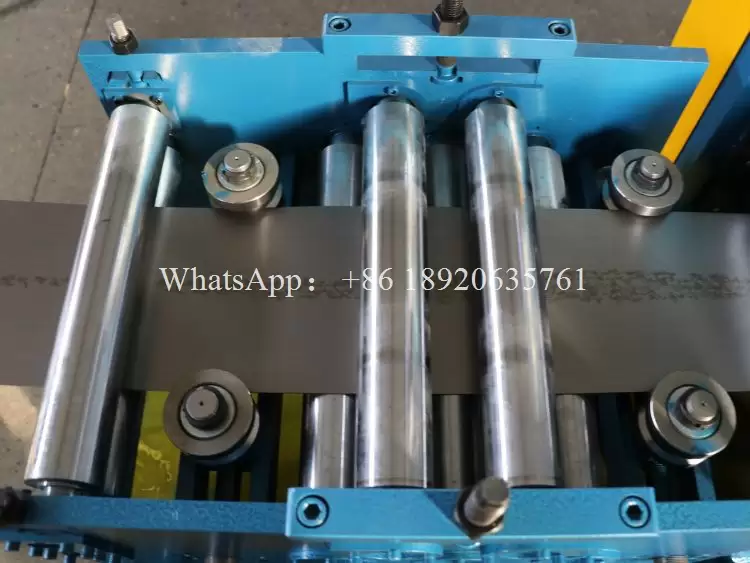

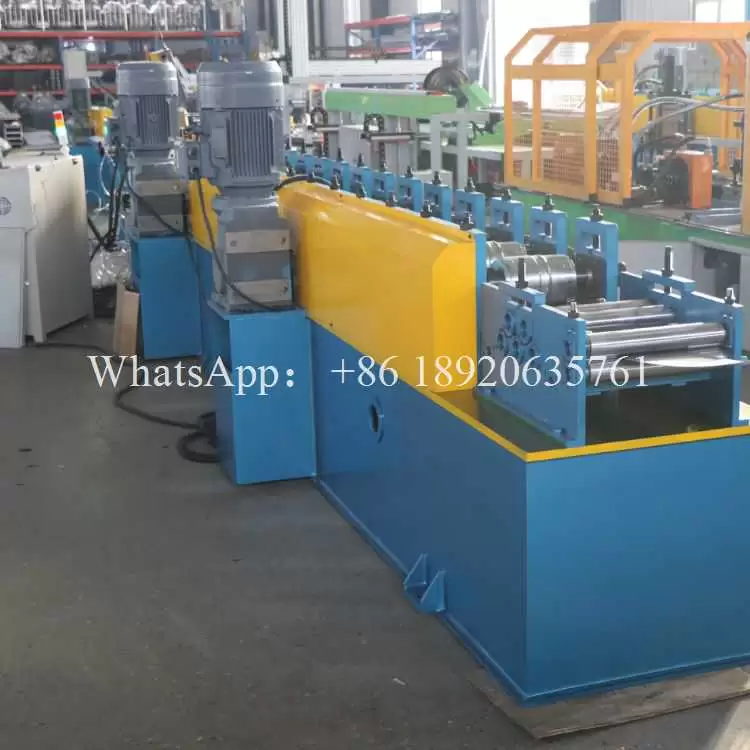

Roll Forming:
After uncoiling, the material passes through the roll forming station, where it is shaped into the desired profile using a series of precision rollers. The CE Certified Shelf Beam Roll Forming Machine ensures uniform and accurate forming of the metal, creating the initial shape of the shelf beam. This process is customizable, allowing for adjustments in feed width, forming thickness, and other parameters to suit specific product requirements.

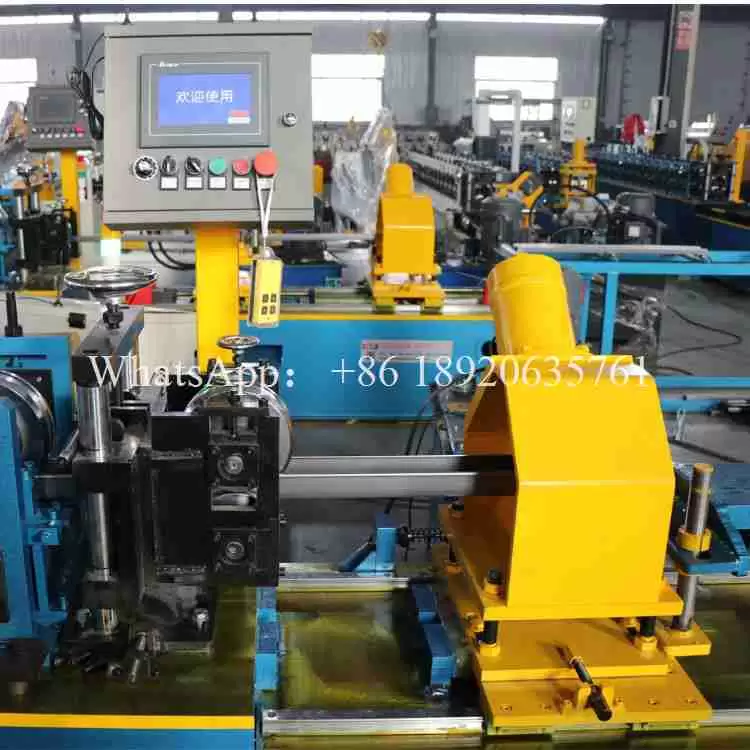

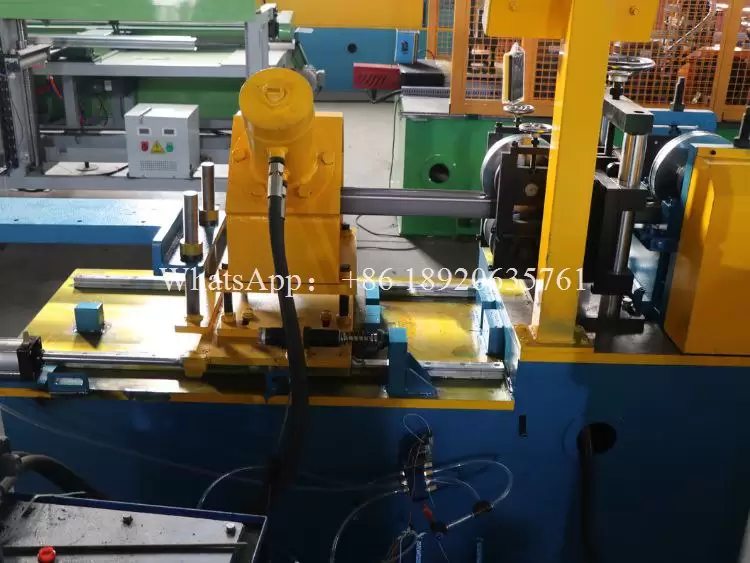

Hydraulic Cutting:
Once the metal has been formed into the correct shape, the next stage is hydraulic shearing. The machine cuts the formed beams to the required length, ensuring that each piece is uniform and meets the required specifications. The hydraulic cutting system provides high cutting power, enabling the machine to handle various material thicknesses and strengths with ease.

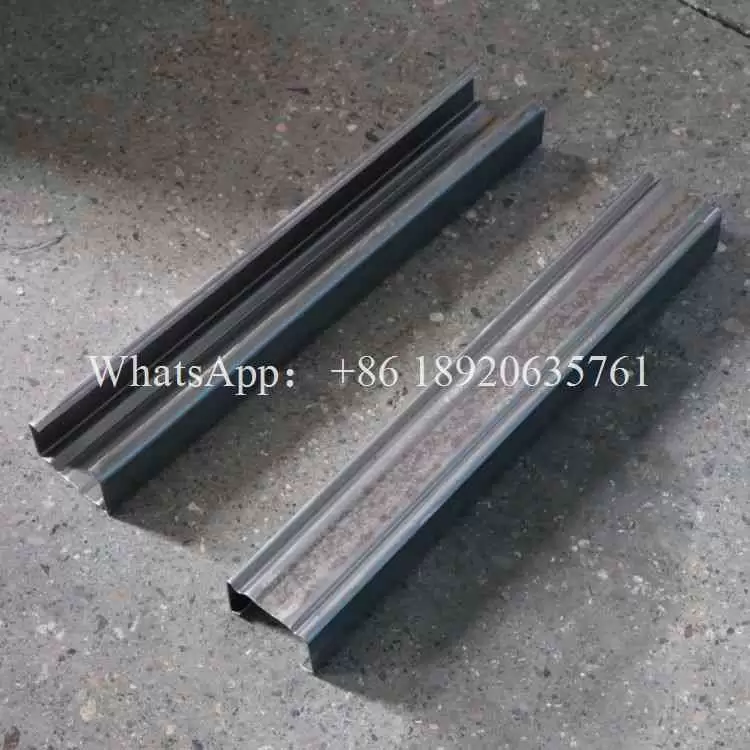

Snap-lock connection roll forming machine
After cutting, the semi-finished shelf beams are transferred to the semi-finished biting roll forming station. This station plays a critical role in creating the final product, as it allows for the interlocking of two separate products that will form a complete shelf beam. The interlocking process ensures that the two parts are securely joined together, providing the necessary structural integrity for the finished product.

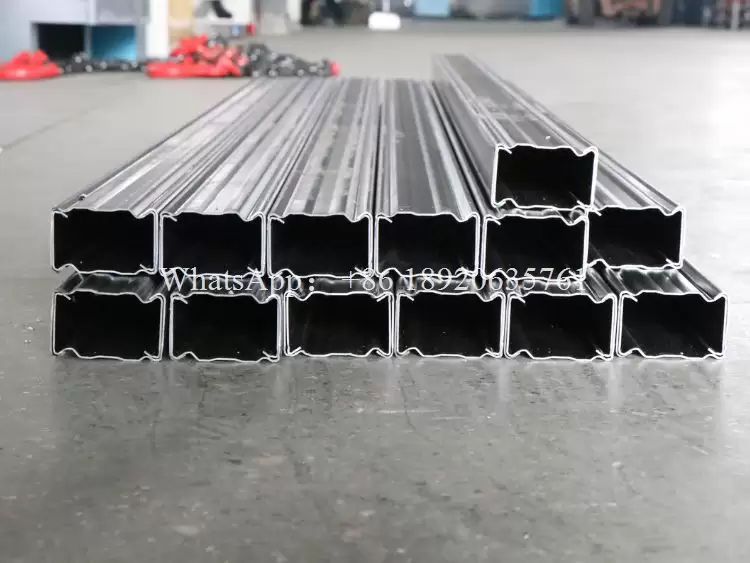

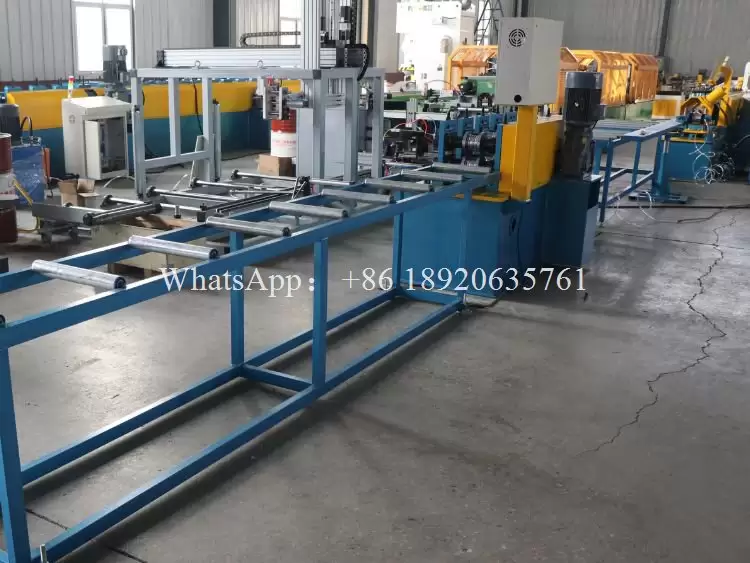

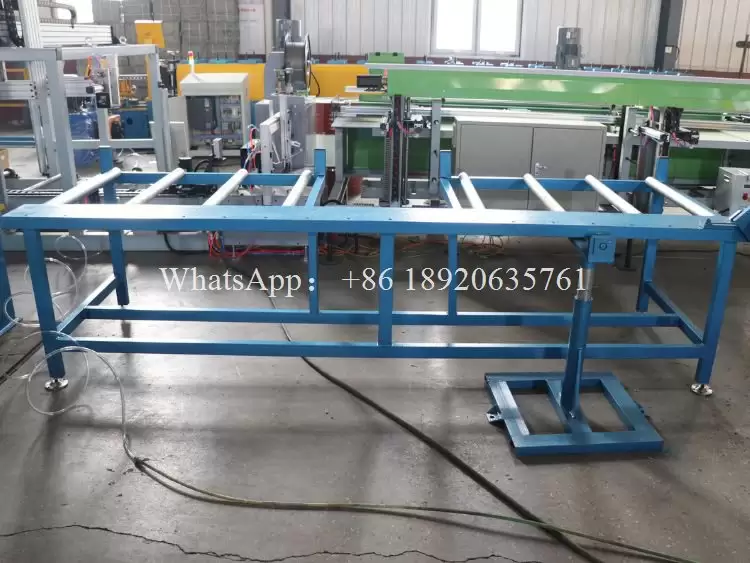

Finished Product Receiving Rack:
After the interlocking process is complete, the fully formed shelf beams are transferred to the finished product receiving rack. The rack automatically organizes and stacks the finished beams, preparing them for packaging and shipment. This automated system helps to streamline the production process, reduce handling costs, and improve overall efficiency.
More parameters
| Product Name | CE Certified Shelf Beam Roll Forming Machine with Remote Warranty Support |
| Main motor power | 15 kw（Siemens） |
| Hydraulic station | Vane pump, 7.5 kw |
| Produce speed | 20 m/min |
| Shaft material | 45# Steel |
| Brand of electrical control cabinet |
Phase sequence protector Independent cabinet |
| Touch screen | Siemens or customized according to customer requirements |
| Rolling materials | CCr12, hardness 55-60 (HRC), chrome plating thickness 0.01-0.015 (mm) |
| Roller diameter | 60 mm |
| Cutting blade material | Cr12MoV, hardness 58 - 62 (HRC) |
| Roller diameter | Φ75 mm |
| Voltage | 380v 50hz 3p be customized |
| Feeding thickness | 1.5 mm |
| Rows | 18-24（be customized） |
| Feeding width |
192±2 mm
|
| Product tolerance |
Length: +2 mm / all processed dimensions
Width, Height: ± 0.5 mm Other aspects: Tolerances for other dimensions (length, angles, etc.) shall conform to EN10162 cold-rolled steel profiles standard. |
| Dimensions (length × width × height) |
21 x 2 x 1.8 (meters)
|
| Weight | About 9 tons |
| Control system | PLC |
| Total power | 42 kw |
| Output material handling rack-Table length | 3m ×2 |
One of the standout features of the CE Certified Shelf Beam Roll Forming Machine with Remote Warranty Support is its customizability. The machine allows manufacturers to adjust key parameters such as feed width, forming thickness, and voltage to suit specific production requirements. Whether you are producing standard shelf beams or custom-designed beams for specialized applications, this machine can be easily adjusted to meet your needs. This flexibility makes the machine ideal for a wide range of industries, from warehouse storage systems to retail display shelving.
The CE Certified Shelf Beam Roll Forming Machine with Remote Warranty Support, providing manufacturers with peace of mind. In the event of any operational issues, engineers can provide troubleshooting and support through online video consultations. This feature ensures that any problems are addressed quickly, minimizing downtime and keeping the production line running smoothly. The ability to resolve technical issues remotely makes the machine more convenient to operate and maintain, particularly for manufacturers in remote locations or those with limited access to on-site technical support.
Application Scenario
Our photos with our customers
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a CE Certified Shelf Beam Roll Forming Machine with Remote Warranty Support. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the CE Certified Shelf Beam Roll Forming Machine with Remote Warranty Support be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
